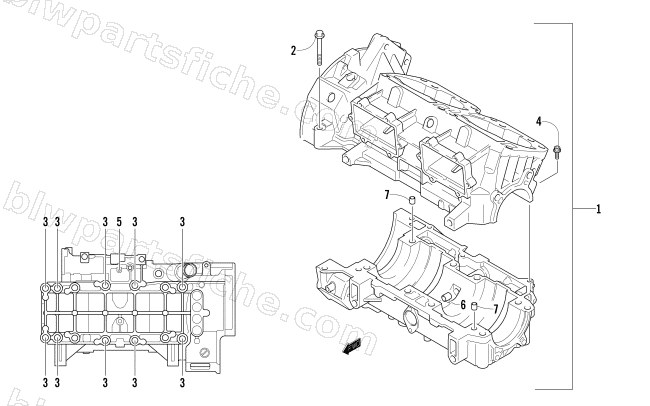

2008 Arctic Cat M8 EFI 153 — CRANKCASE ASSEMBLY

2008 M8 EFI 153

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3007-526	CRANKCASE ASSY	1	$1,458.95
2	3006-538	BOLT,CYL HEAD	1	$5.65
3	3006-488	BOLT,10X87	1	$5.65
4	3007-445	BOLT	1	$2.75
5	3007-527	BOLT	1	$5.09
6	3003-647	BUSHING,OIL PUMP SHAFT,M10	1	$24.77
7	3005-206	PIN (H:10),DOWEL	1	$3.30
