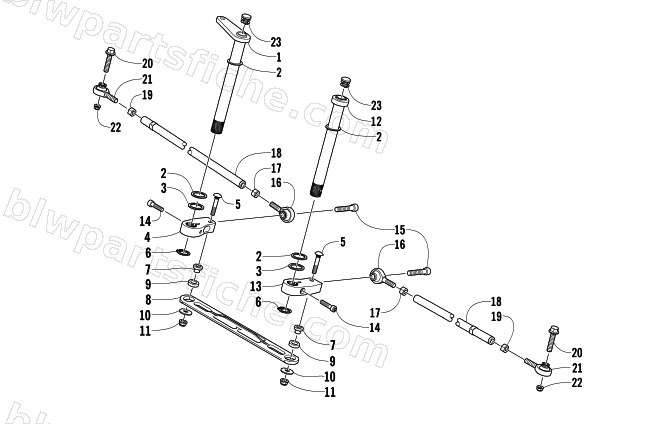

TIE ROD ASSEMBLY
2008 M8 EFI 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-159 | R/B 1705-178 | 1 | $84.95 | |
| 2 | 0623-954 | WASHER,THRUST-.900X1.25X.042 | 1 | $1.92 | |
| 3 | 0623-955 | WASHER,THRUST-.900X1.25X.030 | 1 | $0.95 | |
| 4 | 1705-262 | ARM,BELLCRANK-SPLINED-RH-ASSY | 1 | $72.95 | |
| 5 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 6 | 0623-956 | SNAP RING,EXTL-BOWED-7/8 DIA | 1 | $4.40 | |
| 7 | 2603-721 | AXLE,LINK-STEERING-3/8" | 1 | $2.47 | |
| 8 | 1705-224 | LINK,STEERING-W/BEARING | 1 | $84.95 | |
| 9 | 0605-807 | BEARING,BELLCRANK-99R6C3 | 1 | $8.21 | |
| 10 | 0623-987 | WASHER, BELLVILE-.312 X .930 | 1 | $2.19 | |
| 11 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 12 | 1705-162 | BELLCRANK,IDLER-PTD BLK | 1 | $70.95 | |
| 13 | 1705-263 | ARM,BELLCRANK-SPLINED-LH-ASSY | 1 | $67.95 | |
| 14 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 15 | 1623-394 | SCREW,CAP-HSH 3/8-16 X 1.75" W/2353 | 1 | $21.95 | |
| 16 | 1605-015 | ROD END,LH-3/8-24 (3/8 BORE) | 1 | $49.95 | |
| 17 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 18 | 0605-944 | TUBE,TIE ROD-.625 X 11.47" (3/18-24) | 1 | $43.95 | |
| 19 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 20 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 21 | 1605-022 | ROD END,RH 3/8-24 (3/8 BORE) | 1 | $49.95 | |
| 22 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 23 | 3606-799 | CLOSURE, TUBE -3/4OD X .584-.700ID BLK | 1 | $1.78 |
