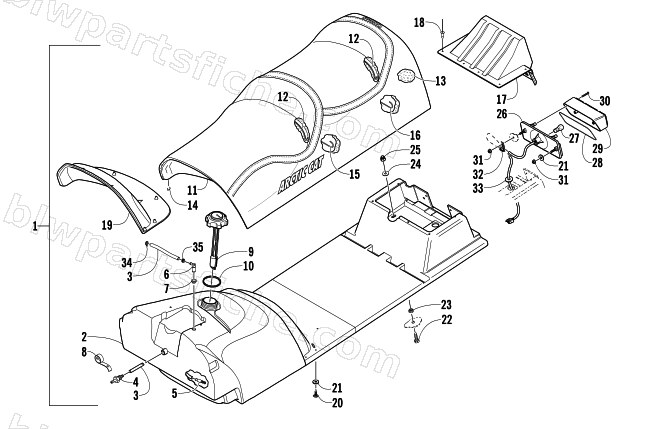

2008 Arctic Cat PANTHER 370 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2008 PANTHER 370
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-484 | SEAT-S/P ASSY | 1 | $1,073.95 | |
| 1 | 2718-483 | SEAT-S/P ASSY | 1 | $1,156.95 | |
| 2 | 0770-654 | TANK,SP ASSY-04 PAN 570 | 1 | $501.95 | |
| 2 | 0770-811 | TANK,GAS-S/P ASSY | 1 | $653.95 | |
| 3 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 3 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 4 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 9 | 0670-202 | CAP,GAS-W/GAUGE {10.25"} | 1 | $82.95 | |
| 11 | 3706-853 | COVER, SEAT-08 PANTHER | 1 | $513.95 | |
| 13 | 0716-991 | FOAM,SEAT-2UP(77-82IDL),44@8.0 | 1 | $268.95 | |
| 14 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 15 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 16 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 17 | 1606-191 | EXTENSION,TOOLBOX | 1 | $104.95 | |
| 18 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 19 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 20 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 23 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 27 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 28 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 29 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 30 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 31 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 32 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 33 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 34 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 35 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 |
