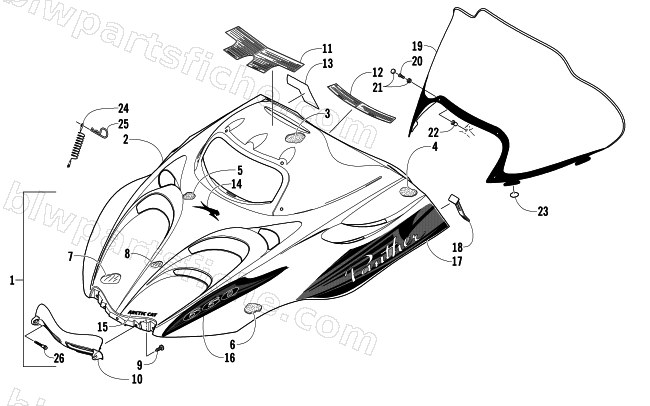

2008 Arctic Cat PANTHER 660 TOURING — HOOD AND WINDSHIELD ASSEMBLY
2008 PANTHER 660 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-420 | HOOD W/DECALS-08 PA 660 | 1 | $1,447.95 | |
| 2 | 1718-983 | HOOD, W/O DECALS-07 PA 660 | 1 | $1,090.95 | |
| 3 | 0617-508 | FOAM, HOOD- MIDDLE UPR RH | 1 | $26.95 | |
| 4 | 0617-506 | FOAM, HOOD-UPR RH | 1 | $68.95 | |
| 4 | 0617-507 | FOAM, HOOD-UPR LH | 1 | $128.95 | |
| 5 | 0617-475 | FOAM,HOOD-MIDDLE | 1 | $15.11 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 7 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 8 | 2606-935 | FOIL, PROTECTIVE-4 STROKE HOOD | 1 | $17.87 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 4606-004 | HINGE, HOOD-PLATINUM | 1 | $49.95 | |
| 11 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 12 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 13 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 14 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 15 | 7611-824 | DECAL, HOOD-"AC"-08 PA | 1 | $48.95 | |
| 16 | 7611-816 | DECAL, HOOD-RH-FORWARD-08 PA | 1 | $48.95 | |
| 16 | 7611-817 | DECAL, HOOD-LH-FORWARD-08 PA | 1 | $267.95 | |
| 17 | 7611-820 | DECAL, HOOD-RH-LOWER-08 PA | 1 | $79.95 | |
| 17 | 7611-821 | DECAL, HOOD-LH-LOWER-08 PA | 1 | $87.95 | |
| 18 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 19 | 2606-432 | WINDSHIELD, SMOKE (MED) | 1 | $200.95 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 24 | 3606-746 | CABLE, HOOD-37" | 1 | $14.95 | |
| 26 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 |
