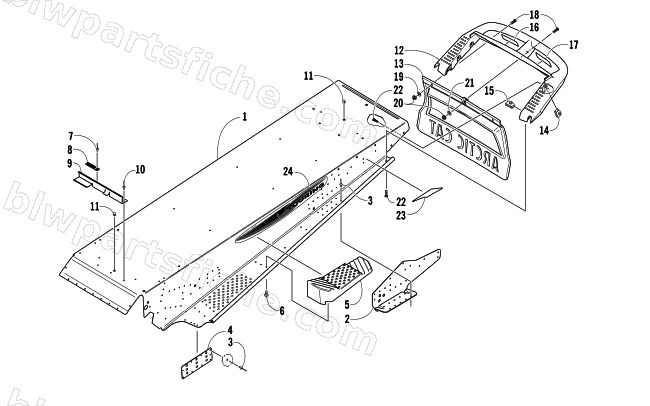

2008 Arctic Cat PANTHER 660 TOURING — TUNNEL AND REAR BUMPER
2008 PANTHER 660 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-035 | TUNNEL,S/P ASSY-UNPTD | 1 | $724.95 | |
| 2 | 0716-868 | BRKT,MTG-SUSPENSION-RH-PTD BLK | 1 | $38.95 | |
| 2 | 0716-869 | BRKT,MTG SUSPENSION-LH-PTD BLK | 1 | $38.95 | |
| 3 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 3 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 4 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 5 | 1606-478 | FOOTREST-RH | 1 | $30.95 | |
| 7 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 8 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 9 | 0707-704 | BRKT, MAIN HARNESS PROTECTOR-PTD BLK | 1 | $17.95 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 12 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 13 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 14 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 15 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 16 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 17 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 18 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 19 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 20 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 6611-688 | DECAL, REFLECTOR-RH | 1 | $15.11 | |
| 23 | 6611-689 | DECAL, REFLECTOR-LH | 1 | $15.11 | |
| 24 | 7611-822 | DECAL, TUNNEL-RH-08 PA | 1 | $36.95 | |
| 24 | 7611-823 | DECAL, TUNNEL-LH-08 PA | 1 | $36.95 |
