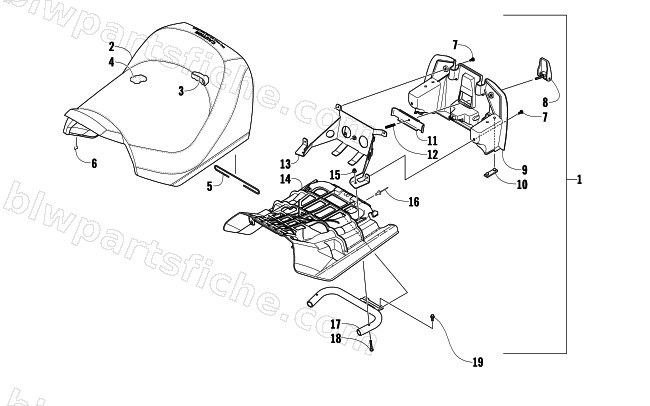

FRONT SEAT ASSEMBLY
2008 T570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7999-840 | SEAT, FRONT-MFG ASSY-NON-ADJUST-TOUR | 1 | $750.95 | |
| 2 | 3706-967 | COVER, SEAT-FRONT-08 TOUR | 1 | $324.95 | |
| 4 | 3706-737 | FOAM,SEAT-FRT TOUR (70-75 ILD).44R@5.35 | 1 | $208.95 | |
| 5 | 5606-379 | WIRE,SEAT - 229 MM - FORMED | 1 | $0.40 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 8 | 5606-086 | LEVER, HAND HOLD | 1 | $34.95 | |
| 9 | 4706-360 | PANEL,SEAT BASE-FRONT-ROUTED | 1 | $46.95 | |
| 10 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 11 | 3706-895 | PLATE, CLAMP-FRONT SEAT-PTD BLK | 1 | $23.39 | |
| 12 | 5606-095 | SPRING,ADJUSTMENT | 1 | $2.19 | |
| 13 | 3706-892 | GUSSET, FRONT SEAT-PTD BLK | 1 | $124.95 | |
| 14 | 4606-301 | BASE, SEAT-FRONT | 1 | $97.95 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 17 | 3706-931 | FRAME,SEAT-WELD'T | 1 | $54.95 | |
| 18 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 19 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 |
