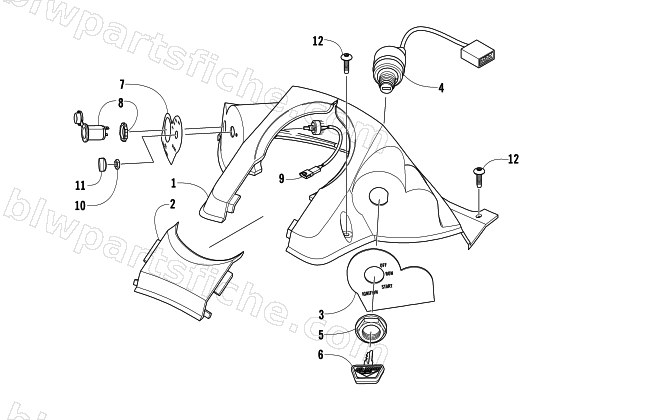

CONSOLE AND SWITCH ASSEMBLY
2008 T660 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-048 | CONSOLE, T660 LE-BLK | 1 | $55.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 3 | 6611-643 | DECAL, CONSOLE SWITCH-RH-4-STROKE | 1 | $12.35 | |
| 4 | 0609-698 | SWITCH, IGNITION-W/KEY | 1 | $156.95 | |
| 5 | 0609-707 | NUT, RETAINING-IGNITION | 1 | $17.95 | |
| 7 | 6611-981 | DECAL, CONSOLE-LH-BLK-ACC/SWITCH | 1 | $16.49 | |
| 8 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 9 | 1686-285 | HARNESS, SWITCH-DRIVER SEAT HEATER | 1 | $98.95 | |
| 11 | 0609-772 | KNOB, SWITCH | 1 | $12.35 | |
| 12 | 1623-175 | SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z | 1 | $13.73 |
