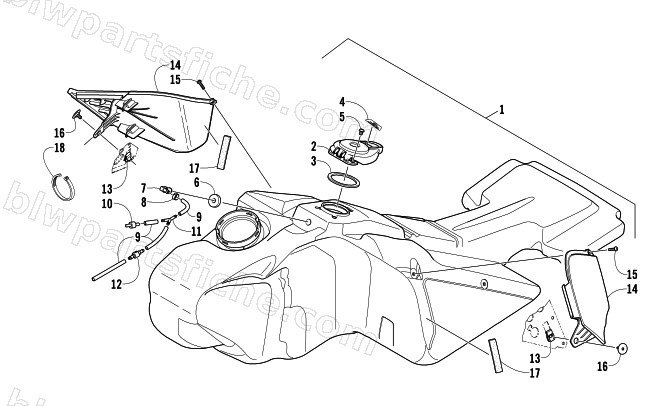

GAS TANK ASSEMBLY
2008 TZ1 TOURING LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-818 | R/B 2670-038 | 1 | $610.95 | |
| 2 | 1670-812 | CAP,GAS-ASSY | 1 | $74.95 | |
| 3 | 1670-816 | SEAL,GAS CAP | 1 | $6.75 | |
| 4 | 7611-810 | DECAL,GAS CAP | 1 | $2.47 | |
| 5 | 8479-365 | SCREW,MACH-HSBH M6X1.0X8 CL8.8 Z&B | 1 | $1.37 | |
| 6 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 7 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 8 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 9 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 9 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 11 | 0670-921 | FITTING,"Y"-1/4X1/4X1/4 | 1 | $10.95 | |
| 12 | 1670-913 | VALVE,PRESSURE RELIEF-VENTLINE | 1 | $26.95 | |
| 13 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 14 | 5606-144 | PANEL, KNEE-RH | 1 | $22.01 | |
| 14 | 5606-145 | PANEL, KNEE-LH | 1 | $22.01 | |
| 15 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 17 | 0619-946 | TAPE,DOUBLE COATED-ACYLIC FOAM(1'LENGTH) | 1 | $37.95 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
