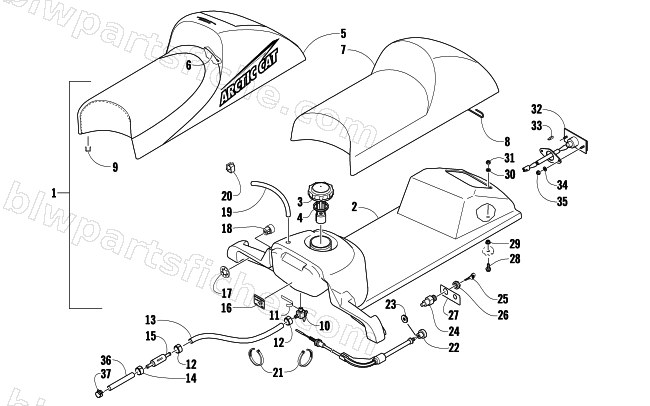

2009 Arctic Cat 120 SNO PRO — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2009 120 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-719 | SEAT,S/P ASSY-GRN | 1 | $612.95 | |
| 1 | 2718-720 | SEAT,S/P ASSY-PINK | 1 | $564.95 | |
| 2 | 1670-969 | TANK, FUEL-120-MULTI LAYER | 1 | $306.95 | |
| 3 | 1670-694 | CAP,GAS-W/GAUGE-06 F 120 | 1 | $42.95 | |
| 5 | 4706-222 | COVER, SEAT - 120 GRN | 1 | $177.95 | |
| 5 | 4706-224 | COVER, SEAT - 120 PNK | 1 | $164.95 | |
| 7 | 1706-017 | FOAM, SEAT(IDL 60-65),48@1.8 | 1 | $102.95 | |
| 8 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 9 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 10 | 2670-064 | VALVE, SHUT-OFF - FUEL | 1 | $56.95 | |
| 11 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 12 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 13 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 14 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 15 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 16 | 3611-856 | DECAL, FUEL | 1 | $12.35 | |
| 17 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 18 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 19 | 0610-960 | HOSE,VENT-.188X.290X43 | 1 | $15.11 | |
| 20 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 22 | 0687-230 | CABLE,CHOKE-120 | 1 | $45.95 | |
| 23 | 0687-181 | NUT,PLASTIC-CHOKE | 1 | $1.64 | |
| 24 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 25 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 26 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 27 | 4611-767 | DECAL,SWITCH/CHOKE-ZR 120 | 1 | $12.95 | |
| 28 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 29 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 30 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 32 | 0609-070 | TAILLIGHT,KITTY CAT | 1 | $54.95 | |
| 33 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 34 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 35 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 36 | 0610-772 | HOSE,GASOLINE-25' | 1 | $252.95 | |
| 37 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
