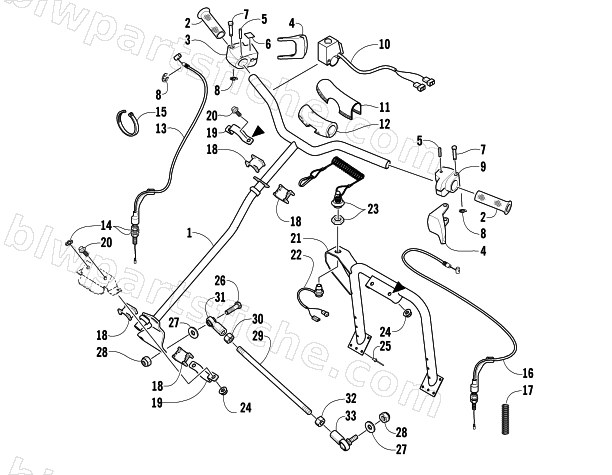

2009 Arctic Cat 120 SNO PRO — STEERING POST AND TIE ROD ASSEMBLY
2009 120 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-866 | COLUMN, STEERING-PTD BLK-F120 | 1 | $112.95 | |
| 2 | 1606-765 | GRIP, HANDLE | 1 | $22.01 | |
| 3 | 0302-165 | HOUSING,THROTTLE CONTROL | 1 | $23.39 | |
| 4 | 0109-609 | LEVER,CONTROL | 1 | $20.63 | |
| 5 | 8070-318 | PIN,SPRING-3/16 X 1-1/2 SLOTTED P&O | 1 | $0.95 | |
| 6 | 0611-022 | DECAL,SWITCH-EMERGENCY STOP | 1 | $3.44 | |
| 7 | 1623-828 | PIN, 1/4D X 1 5/8 | 1 | $12.35 | |
| 8 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 9 | 0302-147 | HOUSING,BRAKE CONTROL | 1 | $20.63 | |
| 10 | 0609-007 | SWITCH,STOP-ENGINE | 1 | $54.95 | |
| 11 | 0605-887 | COVER, HANDLEBAR PAD | 1 | $37.95 | |
| 12 | 0605-501 | PAD, HANDLEBAR | 1 | $36.95 | |
| 13 | 0687-200 | CABLE, THROTTLE(120) | 1 | $57.95 | |
| 14 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0687-229 | CABLE,BRAKE | 1 | $57.95 | |
| 17 | 1602-100 | SPRING, BRAKE RETURN | 1 | $12.35 | |
| 18 | 0605-444 | BEARING,STEERING | 1 | $5.09 | |
| 19 | 0705-896 | BRKT,STEERING SUPPORT-PTD BLK | 1 | $16.49 | |
| 20 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 21 | 1706-050 | STEERING SUPPORT-PTD BLK | 1 | $105.95 | |
| 22 | 0630-138 | SWITCH, TETHER | 1 | $74.95 | |
| 23 | 0630-139 | CORD,TETHER SWITCH | 1 | $51.95 | |
| 24 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 25 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 26 | 8004-135 | SCREW,CAP-HH 5/16-24 X1.50 G5 Z&Y | 1 | $1.09 | |
| 27 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 28 | 1623-423 | NUT, FLEX-LOC 5/16-24 UNF Z & Y | 1 | $3.85 | |
| 29 | 1703-853 | TIE ROD ASSY- 06 F 120 | 1 | $115.95 | |
| 30 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 32 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 |
