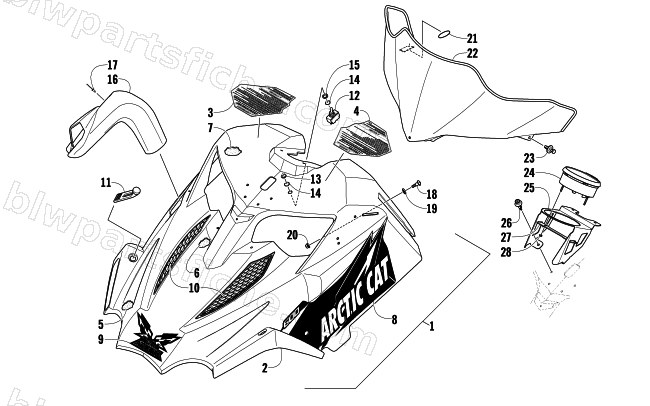

2009 Arctic Cat 600 SNO PRO CROSS COUNTRY — HOOD AND WINDSHIELD ASSEMBLY
2009 600 SNO PRO CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-758 | HOOD W/DECALS (CROSS COUNTRY) | 1 | $667.95 | |
| 2 | 2718-759 | HOOD W/O DECALS (CROSS COUNTRY) | 1 | $497.95 | |
| 3 | 8611-302 | DECAL,CAUTION/WARNING-FRENCH-RH | 1 | $20.63 | |
| 4 | 8611-303 | DECAL,CAUTION/WARNING-ENGLISH-LH | 1 | $20.63 | |
| 5 | 0617-576 | FOAM,HOOD-RH | 1 | $16.49 | |
| 5 | 0617-577 | FOAM,HOOD-LH | 1 | $42.95 | |
| 6 | 0617-579 | FOAM,HOOD-CENTER | 1 | $37.95 | |
| 7 | 0617-578 | FOAM,HOOD-REAR | 1 | $37.95 | |
| 8 | 8611-674 | DECAL,HOOD-RH | 1 | $89.95 | |
| 8 | 8611-675 | DECAL,HOOD-LH | 1 | $89.95 | |
| 9 | 8611-682 | DECAL,HOOD-CREST | 1 | $113.95 | |
| 10 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 10 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 11 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 12 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 13 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 14 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 15 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 16 | 5606-641 | DUCT,BRAKE | 1 | $78.95 | |
| 17 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 18 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 0423-540 | NUT,FLANGE-LOCK-M6 | 1 | $0.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 5606-867 | WINDSHIELD,MID-CROSS COUNTRY | 1 | $154.95 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 0620-351 | SPEEDO,LCD-08' AC 600 R-CALIB-MID LVL | 1 | $500.95 | |
| 25 | 4706-526 | BRKT,MTG-SPEEDO/TACH-PTD BLK | 1 | $62.95 | |
| 26 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 27 | 4706-527 | PLATE,BACKER-SPEEDO/TACH-PTD BLK | 1 | $34.95 | |
| 28 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 |
