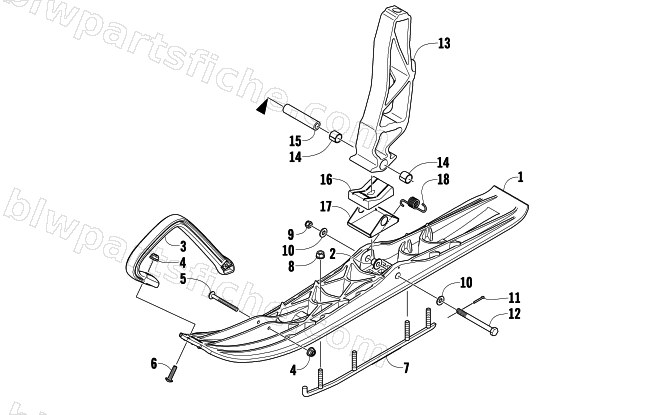

2009 Arctic Cat 600 SNO PRO CROSS COUNTRY — SKI AND SPINDLE ASSEMBLY
2009 600 SNO PRO CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-660 | SKI,PLASTIC-MACH | 1 | $231.95 | |
| 2 | 2603-397 | INSERT,SKI | 1 | $15.11 | |
| 3 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 4 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 5 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 6 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 7 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 10 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 11 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 12 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 13 | 2703-560 | SPINDLE,RH-FABR | 1 | $289.95 | |
| 13 | 2703-561 | SPINDLE,LH-FABR | 1 | $289.95 | |
| 14 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 15 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 16 | 2603-824 | DAMPER,SKI-RUBBER | 1 | $17.87 | |
| 17 | 2603-894 | PLATE,DAMPER | 1 | $30.95 | |
| 18 | 3606-549 | SPRING,SEAT STRAP | 1 | $16.49 |
