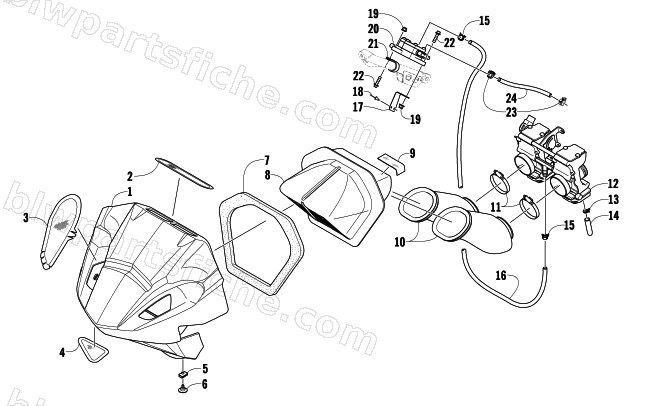

2009 Arctic Cat 600 SNO PRO — AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
2009 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-837 | R/B 6606-266 | 1 | $313.95 | |
| 2 | 5606-826 | SCREEN,AIR SILENCER-UPPER | 1 | $33.95 | |
| 3 | 5606-838 | SCREEN,AIR SILENCER-UPR RH | 1 | $33.95 | |
| 3 | 5606-839 | SCREEN,AIR SILENCER-UPR LH | 1 | $33.95 | |
| 4 | 5606-840 | SCREEN,AIR SILENCER-LWR RH | 1 | $33.95 | |
| 4 | 5606-841 | SCREEN,AIR SILENCER-LWR LH | 1 | $33.95 | |
| 5 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 6 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 7 | 0617-594 | FOAM,SEAL-AIR SILENCER INTAKE | 1 | $23.39 | |
| 8 | 5606-836 | INTAKE, AIR SILENCER | 1 | $200.95 | |
| 9 | 2606-554 | FOIL,PROTECTIVE-3" X 4" | 1 | $3.44 | |
| 10 | 2670-049 | BOOT,CARB | 1 | $93.95 | |
| 11 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 12 | 2670-050 | CARB,TM40-B403 | 1 | $1,174.95 | |
| 12 | 2670-070 | CARB,TM40-B406 (CROSS COUNTRY) | 1 | $1,354.95 | |
| 13 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 14 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 15 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 | |
| 16 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 17 | 5606-967 | BRKT,MTG-FUEL PUMP | 1 | $6.75 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 1670-230 | PUMP,FUEL W/O OIL INLET | 1 | $75.95 | |
| 21 | 1623-777 | CLAMP,CABLE | 1 | $3.85 | |
| 22 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 23 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 24 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 |
