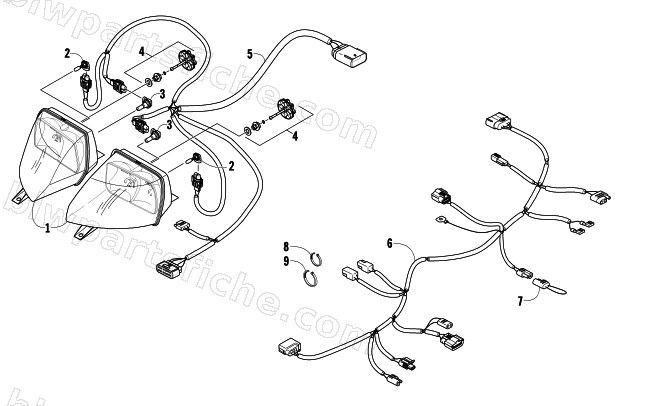

2009 Arctic Cat BEARCAT 570 LONG TRACK — HEADLIGHT AND WIRING ASSEMBLIES
2009 BEARCAT 570 LONG TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-820 | HEADLIGHT,RH-ASSY-ECONOMY | 1 | $243.95 | |
| 1 | 0609-821 | HEADLIGHT,LH-ASSY-ECONOMY | 1 | $237.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-831 | BULB, HIGH BEAM-H8 | 1 | $50.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-503 | HARNESS, CONSOLE-F/C-BC570 | 1 | $174.95 | |
| 6 | 1686-509 | HARNESS, MAIN-F/C-BC570 | 1 | $275.95 | |
| 7 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
