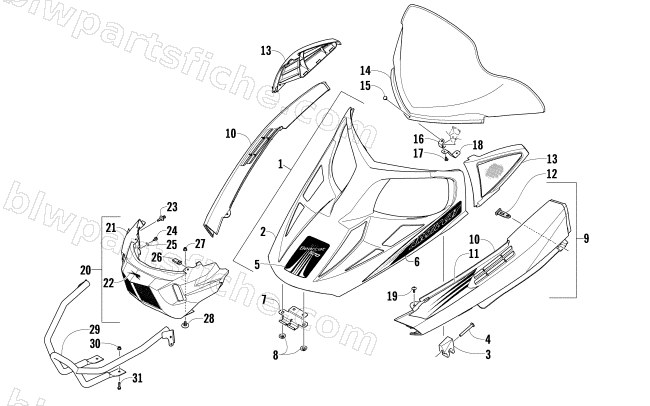

HOOD, WINDSHIELD, AND FRONT BUMBER ASSEMBLY
2009 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-631 | LID,HOOD-BC BLUE-W/DECALS | 1 | $314.95 | |
| 2 | 7800-235 | LID,HOOD-BC BLUE-W/O VENTS-MFG ASSY | 1 | $174.95 | |
| 3 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 3 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 4 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 5 | 8611-530 | DECAL, HOOD-CREST | 1 | $88.95 | |
| 6 | 8611-522 | DECAL, HOOD-"ARCTIC CAT"-RH | 1 | $96.95 | |
| 6 | 8611-523 | DECAL, HOOD-"ARCTIC CAT"-LH | 1 | $88.95 | |
| 7 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 8 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 9 | 2718-646 | SPAR,FRONT-RH-BLK-W/DECALS | 1 | $79.95 | |
| 9 | 2718-647 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $79.95 | |
| 10 | 5606-356 | SPAR,RH-FRONT-MOLD BLK | 1 | $66.95 | |
| 10 | 5606-357 | SPAR,LH-FRONT-MOLD BLK | 1 | $66.95 | |
| 11 | 8611-532 | DECAL, SPAR-RH | 1 | $93.95 | |
| 11 | 8611-533 | DECAL, SPAR-LH | 1 | $93.95 | |
| 12 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 13 | 5606-934 | BEZEL,INTAKE-RH-BLU ASSY | 1 | $53.95 | |
| 13 | 5606-935 | BEZEL,INTAKE-LH-BLU ASSY | 1 | $59.95 | |
| 14 | 5606-962 | WINDSHIELD,HIGH-TINT | 1 | $224.95 | |
| 15 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 16 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 19 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 20 | 2718-644 | FACIA,FRONT W/DECALS-PLAT | 1 | $125.95 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 25 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 26 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 27 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 28 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 29 | 4706-063 | BUMPER, FRONT-PTD BLK | 1 | $275.95 | |
| 30 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 31 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 |
