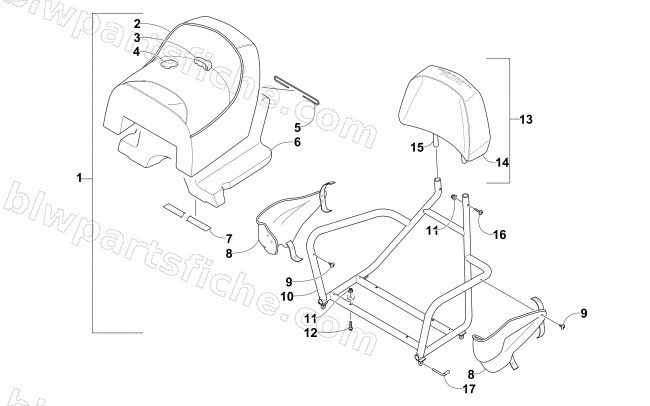

2009 Arctic Cat BEARCAT 570 XT — PASSENGER SEAT AND BACKREST ASSEMBLY
2009 BEARCAT 570 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-465 | SEAT, REAR-MFG ASSY-BCWT | 1 | $754.95 | |
| 2 | 4706-120 | COVER, SEAT-PASS-BCWT | 1 | $219.95 | |
| 4 | 4706-121 | FOAM, SEAT-PASS-BCWT .42R@3.7 | 1 | $132.95 | |
| 5 | 5606-380 | WIRE,SEAT - 279 MM - FORMED | 1 | $2.88 | |
| 6 | 5606-278 | SEAT BASE - REAR - BCWT | 1 | $133.95 | |
| 7 | 6990-283 | VELCRO,HOOK-SELF LOCK W/ADH-1"X80" | 1 | $78.95 | |
| 8 | 5606-834 | WINDGUARD-RH | 1 | $69.95 | |
| 8 | 5606-835 | WINDGUARD-LH | 1 | $69.95 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 4706-068 | FRAME, SEAT-REAR-PTD BLK | 1 | $228.95 | |
| 11 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 8408-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 Z&Y | 1 | $1.50 | |
| 13 | 4706-312 | BACKREST,W/COVER-BLUE-MFG ASSY | 1 | $382.95 | |
| 14 | 4706-313 | COVER,BACKREST-BLUE | 1 | $227.95 | |
| 15 | 5606-257 | BACKREST,W/OVERMOLD | 1 | $136.95 | |
| 16 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 17 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 |
