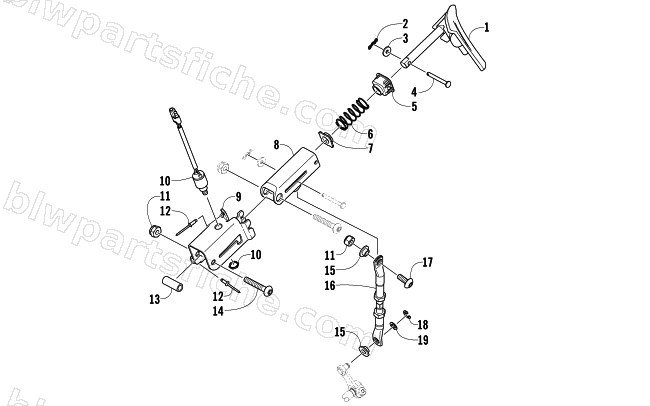

REVERSE SHIFT LEVER ASSEMBLY
2009 BEARCAT 570 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-125 | LEVER, SHIFT | 1 | $176.95 | |
| 2 | 1623-728 | CLIP,BOWTIE | 1 | $1.09 | |
| 3 | 0423-818 | WASHER,FLAT-15.5MM ODX5.5MM IDX1.8-Z&Y | 1 | $1.50 | |
| 4 | 1623-709 | RIVET, 5MMX45 | 1 | $3.95 | |
| 5 | 2602-117 | ENDCAP, SHIFT TUBE | 1 | $3.95 | |
| 6 | 2602-118 | SPRING,21.46ODX1.22-WIRE X76.2-LG | 1 | $19.95 | |
| 7 | 2602-119 | BUSHING, SPRING | 1 | $3.95 | |
| 8 | 0702-972 | TUBE, SHIFT-WELD'T | 1 | $288.95 | |
| 9 | 2602-112 | BRKT, SHIFT PIVOT | 1 | $25.95 | |
| 10 | 0630-224 | SWITCH,GEAR INDICATOR | 1 | $53.95 | |
| 11 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 12 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 13 | 2602-115 | SPACER, SHIFT TUBE | 1 | $4.95 | |
| 14 | 8468-850 | SCREW,MACH-TSPNH M8X1.25X50 CL8.8 BLK | 1 | $10.97 | |
| 15 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 16 | 0702-974 | LINKAGE-ASSY | 1 | $55.95 | |
| 17 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 18 | 0423-169 | E-RING,5/16-(.242 X.588 X.035) | 1 | $0.68 | |
| 19 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 |
