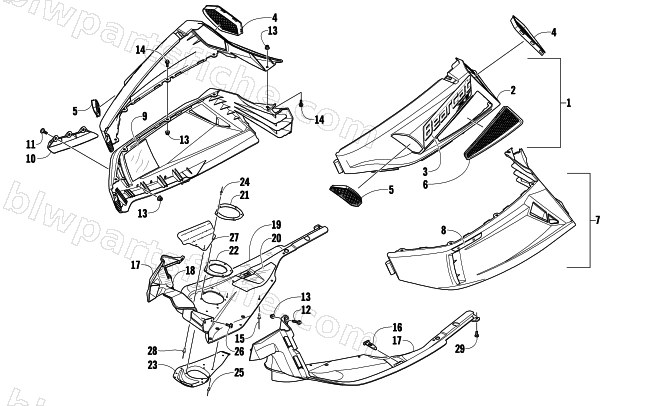

2009 Arctic Cat BEARCAT 570 XT — SKID PLATE AND SIDE PANEL ASSEMBLY
2009 BEARCAT 570 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-652 | PANEL,SIDE-UPR RH-BC BLUE-W/DECAL | 1 | $313.95 | |
| 1 | 2718-653 | PANEL,SIDE-UPR LH-BC BLUE-W/DECAL | 1 | $323.95 | |
| 2 | 5606-614 | PANEL,SIDE-UPR-RH-MOLD BEARCAT BLUE | 1 | $486.95 | |
| 2 | 4706-279 | PANEL,SIDE-UPR-LH-BC BLUE-F/C-ROUTED | 1 | $471.95 | |
| 3 | 8611-534 | DECAL, UPPER PANEL-RH | 1 | $54.95 | |
| 3 | 8611-535 | DECAL, UPPER PANEL-LH | 1 | $70.95 | |
| 4 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 4 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 6 | 5606-185 | VENT, SIDE PANEL-UPR-F/C-BLK | 1 | $22.01 | |
| 7 | 2718-532 | PANEL,SIDE-LWR RH W/O DECALS-BLK | 1 | $279.95 | |
| 7 | 2718-533 | PANEL,SIDE-LWR LH W/O DECALS-BLK | 1 | $279.95 | |
| 8 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 9 | 5606-548 | FOIL,PROTECTIVE-LWR RH-SIDE PANEL | 1 | $2.61 | |
| 10 | 5606-404 | DEFLECTOR,EXHAUST | 1 | $9.79 | |
| 11 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 12 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 15 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 16 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 17 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 17 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 18 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 19 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 20 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 21 | 1712-348 | PLATE,EXHAUST OUTLET SEAL-PTD BLK | 1 | $15.11 | |
| 22 | 2612-287 | SEAL, EXHAUST OUTLET-F570 | 1 | $16.49 | |
| 23 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 24 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 25 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 26 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 27 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 28 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 29 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 |
