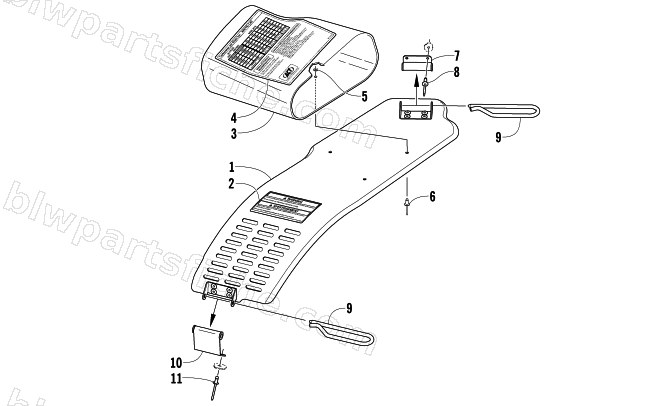

BELT GUARD ASSEMBLY
2009 BEARCAT 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-153 | GUARD,CLUTCH-ASSY | 1 | $291.95 | |
| 2 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 3 | 0613-007 | DUCT, COOLING-ROUTED-570 | 1 | $49.95 | |
| 4 | 8611-614 | DECAL, JET CHART-09 570 | 1 | $31.95 | |
| 5 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 6 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 7 | 1707-169 | HINGE, CLUTCH SHIELD-REAR-W/INSERTS | 1 | $13.73 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 1623-720 | PIN, CLUTCH GUARD | 1 | $16.49 | |
| 10 | 1707-168 | HINGE, CLUTCH SHEILD-FRT-W/INSERTS | 1 | $15.11 | |
| 11 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 |
