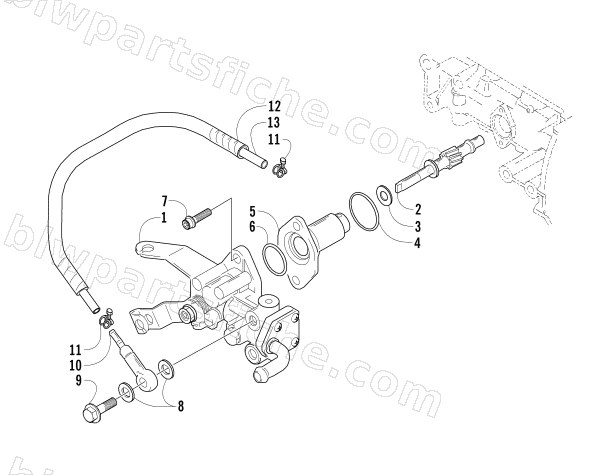

OIL PUMP
2009 BEARCAT 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-429 | PUMP ASSY,OIL | 1 | $685.95 | |
| 2 | 3002-770 | GEAR,OIL PUMP DRIVEN | 1 | $94.95 | |
| 3 | 3002-749 | SHIM,M7 | 1 | $2.06 | |
| 4 | 3005-126 | O RING | 1 | $4.26 | |
| 5 | 3003-749 | RETAINER,OIL PUMP | 1 | $120.95 | |
| 6 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 7 | 3007-471 | BOLT | 1 | $3.16 | |
| 8 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 9 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 10 | 3005-224 | VALVE, CHECK | 1 | $53.95 | |
| 11 | 3003-218 | CLIP, HOSE,M7 | 1 | $4.26 | |
| 12 | 3005-032 | PROTECTOR | 1 | $24.77 | |
| 13 | 3005-225 | HOSE, OIL,600MM | 1 | $61.95 |
