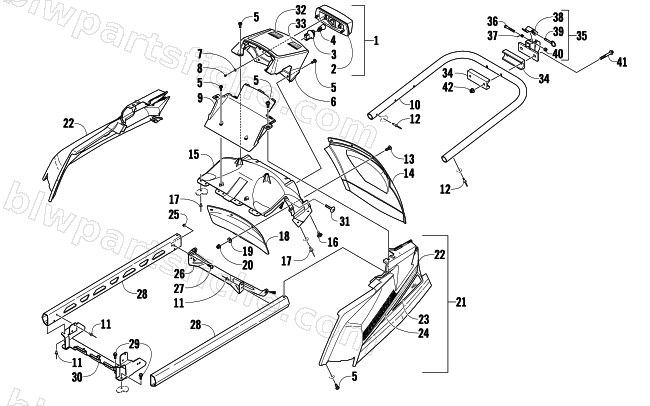

2009 Arctic Cat BEARCAT 570 — REAR BUMPER, HITCH, RACK RAIL, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2009 BEARCAT 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 4 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 5 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 6 | 5606-063 | HOOD, TAILLIGHT-BLK | 1 | $57.95 | |
| 7 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 8 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 9 | 5606-065 | PANEL, TAILLIGHT ACCESS-MOLD BLK | 1 | $32.95 | |
| 10 | 1707-289 | BUMPER, REAR-PTD PLATINUM-09 BC570 | 1 | $152.95 | |
| 11 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 12 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 13 | 1623-782 | SCREW,MACH-TSTRH M6X1.0X20 RIE BLK | 1 | $1.92 | |
| 14 | 5606-254 | SNOWFLAP, BLK-W/8611-268 | 1 | $84.95 | |
| 15 | 5606-056 | CLOSE-OFF, TUNNEL-MOLD BLK | 1 | $46.95 | |
| 16 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 17 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 18 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 19 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 2718-634 | FENDER, REAR-RH W/DECAL | 1 | $94.95 | |
| 21 | 2718-635 | FENDER, REAR-LH W/DECAL | 1 | $94.95 | |
| 22 | 2718-488 | FENDER,REAR-RH W/O DECAL (TOUR) | 1 | $62.95 | |
| 22 | 2718-489 | FENDER,REAR-LH W/O DECAL (TOUR) | 1 | $69.95 | |
| 23 | 8611-304 | DECAL,REFLECTOR-RED-RH (TOUR) | 1 | $20.63 | |
| 23 | 8611-305 | DECAL,REFLECTOR-RED-LH (TOUR) | 1 | $20.63 | |
| 24 | 8611-528 | DECAL, FENDER-RH | 1 | $33.95 | |
| 24 | 8611-529 | DECAL, FENDER-LH | 1 | $35.95 | |
| 25 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 26 | 3706-989 | MOUNT, RAIL-REAR-PTD BLK | 1 | $102.95 | |
| 27 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 28 | 3706-857 | RAIL, RACK-MACH | 1 | $86.95 | |
| 29 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 30 | 4706-017 | BRKT, RAIL MOUNT-FRT-PTD BLK | 1 | $82.95 | |
| 31 | 1623-700 | SCREW, SELF TAPPING-M8X42 TRILOBE Z&Y | 1 | $3.16 | |
| 32 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 33 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 34 | 3706-896 | BRKT, HITCH-PTD BLK | 1 | $30.95 | |
| 35 | 0706-727 | HITCH,PINTAL-ASSY-SWEDISH | 1 | $109.95 | |
| 36 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 37 | 0623-335 | SPRING,TRAILER HITCH LATCH | 1 | $15.11 | |
| 38 | 2706-229 | LATCH,HITCH-PTD BLK | 1 | $15.11 | |
| 39 | 0623-213 | PIN,HITCH-COTTERLESS-SWEDISH | 1 | $20.63 | |
| 40 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 41 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 42 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
