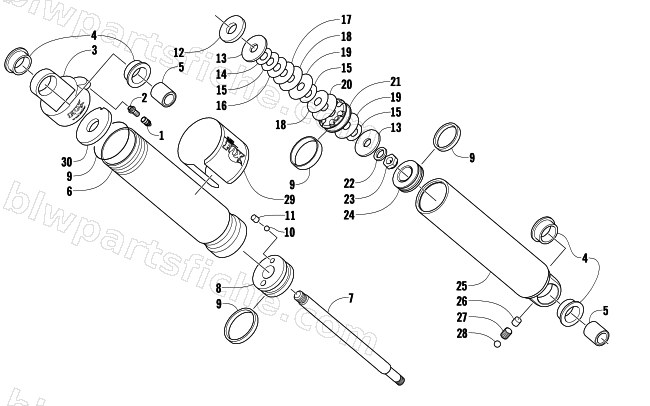

2009 Arctic Cat CF1000 SNO PRO — FRONT SUSPENSION SHOCK ABSORBER
2009 CF1000 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-403 | SHOCK,SKI-FLOAT 18.80"-ASSY | 1 | $898.95 | |
| 0 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 2603-418 | CAP,AIR SLEEVE-FLOAT ASSY | 1 | $181.95 | |
| 4 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 5 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 6 | 2603-411 | SLEEVE,AIR-ASSY-8.915"-(FLOAT) | 1 | $332.95 | |
| 7 | 2603-415 | SHAFT,SHOCK-.498 X 9.250" | 1 | $151.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 13 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 14 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 15 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 16 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 17 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 18 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 19 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 20 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 21 | 2604-412 | PISTON,.055 DIA HOLE | 1 | $58.95 | |
| 22 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 23 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 24 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 25 | 2603-413 | BODY,FLOAT SHOCK-9.425" | 1 | $259.95 | |
| 26 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 27 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 28 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 29 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 | |
| 30 | 2603-613 | SPACER,AIR VOLUME REDUCER-.1875" | 1 | $16.95 |
