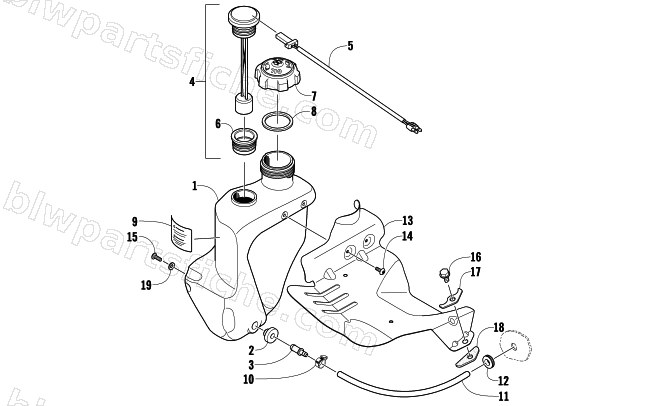

OIL TANK ASSEMBLY
2009 CF8 LE SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-930 | TANK,OIL-CLEAR | 1 | $131.95 | |
| 2 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 3 | 1670-481 | FITTING,OIL TANK | 1 | $4.26 | |
| 4 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 5 | 0609-518 | SWITCH, OIL-W/HARNESS- ASSY | 1 | $102.95 | |
| 6 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 7 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 8 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 9 | 4611-532 | DECAL,OIL TANK-VEV SYNTHETIC | 1 | $2.75 | |
| 10 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 11 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 11 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 12 | 1623-256 | GROMMET,RUBBER-.63"ID X 1.13"OD X .19"GR | 1 | $3.99 | |
| 13 | 5606-372 | SHIELD,HEAT-ECU WIRING | 1 | $102.95 | |
| 14 | 1623-705 | SCREW,MACH-TSTRH 10-24X.3125 G2 W/204 | 1 | $1.39 | |
| 15 | 1623-806 | SCREW,MACH-TSTRH 1/4-20X0.375 G2 W/203 | 1 | $2.06 | |
| 16 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 17 | 5606-657 | BRKT,HOLDDOWN-HEAT SHIELD | 1 | $2.06 | |
| 18 | 0617-598 | PAD, HEAT SHIELD - BOTTOM | 1 | $1.50 | |
| 19 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
