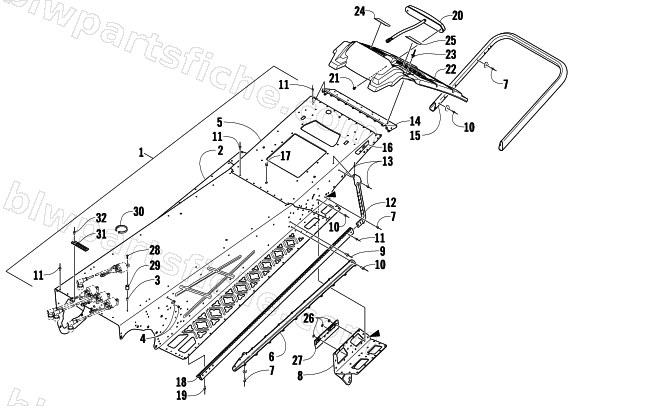

TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2009 CF8 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-315 | CHASSIS/TUNNEL-S/P ASSY (09 CF 141") | 1 | $2,023.29 | |
| 1 | 2718-736 | TUNNEL,S/P ASSY | 1 | $735.95 | |
| 2 | 2718-735 | TUNNEL,FRONT-W/INSERTS | 1 | $390.95 | |
| 3 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 4 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 5 | 5606-808 | BODY,REAR-141"-BLANKED/FORMED | 1 | $552.95 | |
| 6 | 5606-402 | BRKT,SUPPORT-TUNNEL-RH | 1 | $126.95 | |
| 6 | 5606-403 | BRKT,SUPPORT-TUNNEL-LH | 1 | $126.95 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 8 | 2706-456 | BRKT,MTG-REAR SUSPENSION-RH-MACH | 1 | $108.95 | |
| 8 | 2706-457 | BRKT,MTG-REAR SUSPENSION-LH-MACH | 1 | $108.95 | |
| 9 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 10 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 12 | 5606-594 | GUSSET,TUNNEL ROLL-RH-CAST | 1 | $20.63 | |
| 12 | 5606-595 | GUSSET,TUNNEL ROLL-LH-CAST | 1 | $20.63 | |
| 13 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 14 | 5606-253 | END CAP,TUNNEL-FORMED | 1 | $43.95 | |
| 15 | 5606-809 | BUMPER,REAR-141"-FORMED/MACH | 1 | $105.95 | |
| 16 | 8611-520 | DECAL,REFLECTOR-REAR-RH (RED) | 1 | $23.39 | |
| 16 | 8611-521 | DECAL,REFLECTOR-REAR-LH (RED) | 1 | $23.39 | |
| 17 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 18 | 5606-490 | ROLL,TUNNEL (M)-R/H-MACH | 1 | $167.95 | |
| 18 | 5606-491 | ROLL,TUNNEL (M)-L/H-MACH | 1 | $166.95 | |
| 19 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 20 | 0609-863 | TAILLIGHT,LED-1.5" X 9.5" (10" LEAD)RED | 1 | $112.95 | |
| 21 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 22 | 5606-525 | SNOWFLAP,LONG-INJ MOLD | 1 | $124.95 | |
| 23 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 24 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 25 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 26 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 27 | 4606-790 | GUIDE,TRACK-TUNNEL-R/H | 1 | $38.95 | |
| 27 | 4606-791 | GUIDE,TRACK-TUNNEL-L/H | 1 | $38.95 | |
| 28 | 1623-671 | SCREW,MACH-TSTRH 10-24X1.75 G2 W/204 | 1 | $1.23 | |
| 29 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 32 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 |
