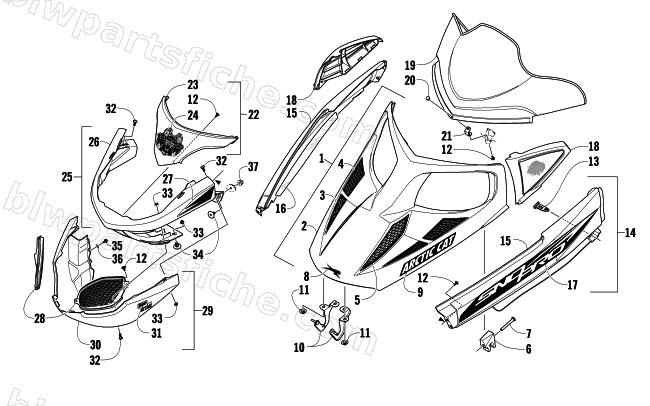

2009 Arctic Cat F1000 SNO PRO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2009 F1000 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-574 | LID,HOOD-BLK W/DECALS | 1 | $251.95 | |
| 1 | 2718-575 | LID,HOOD-BLK W/DECALS | 1 | $218.95 | |
| 2 | 7800-110 | LID,HOOD-BLK/GRN-MFG ASSY | 1 | $174.95 | |
| 2 | 7800-111 | LID,HOOD-BLK/ORN-MFG ASSY | 1 | $174.95 | |
| 3 | 4606-636 | VENT,HOOD-OUTER FRONT-RH-MOLD GRN | 1 | $20.63 | |
| 3 | 4606-637 | VENT,HOOD-OUTER FRONT-LH-MOLD GRN | 1 | $20.63 | |
| 3 | 4606-638 | VENT,HOOD-OUTER FRONT-RH-MOLD ORN | 1 | $37.95 | |
| 3 | 4606-639 | VENT,HOOD-OUTER FRONT-LH-MOLD ORN | 1 | $39.95 | |
| 4 | 4606-646 | VENT,HOOD-OUTER-REAR RH-MOLD GRN | 1 | $20.63 | |
| 4 | 4606-647 | VENT,HOOD-OUTER-REAR LH-MOLD GRN | 1 | $20.63 | |
| 4 | 4606-648 | VENT,HOOD-OUTER-REAR RH-MOLD ORN | 1 | $39.95 | |
| 4 | 4606-649 | VENT,HOOD-OUTER-REAR LH-MOLD ORN | 1 | $39.95 | |
| 5 | 4606-620 | VENT,HOOD LID-INNER-RH-MOLD GRN | 1 | $26.95 | |
| 5 | 4606-621 | VENT,HOOD LID-INNER-LH-MOLD GRN | 1 | $26.95 | |
| 5 | 4606-622 | VENT,HOOD LID-INNER-RH-MOLD ORN | 1 | $25.95 | |
| 5 | 4606-623 | VENT,HOOD LID-INNER-LH-MOLD ORN | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 8611-454 | DECAL,HOOD LID-GRN "ARCTIC CAT" | 1 | $30.95 | |
| 9 | 8611-455 | DECAL,HOOD LID-ORN "ARCTIC CAT" | 1 | $32.95 | |
| 10 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 10 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 2718-556 | SPAR,FRONT-RH-BLK-W/DECALS | 1 | $172.95 | |
| 14 | 2718-557 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $154.95 | |
| 14 | 2718-558 | SPAR,FRONT-RH-BLK-W/DECALS | 1 | $135.95 | |
| 14 | 2718-559 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $135.95 | |
| 15 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 15 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-448 | DECAL,FRT SPAR-GRN RH-"SNO PRO" | 1 | $117.95 | |
| 17 | 8611-449 | DECAL,FRT SPAR-GRN LH-"SNO PRO" | 1 | $117.95 | |
| 17 | 8611-466 | DECAL,FRT SPAR-ORN RH-"SNO PRO" | 1 | $85.95 | |
| 17 | 8611-467 | DECAL,FRT SPAR-ORN LH-"SNO PRO" | 1 | $141.95 | |
| 18 | 5606-924 | BEZEL,INTAKE-RH-BLK ASSY | 1 | $58.95 | |
| 18 | 5606-925 | BEZEL,INTAKE-LH-BLK ASSY | 1 | $58.95 | |
| 19 | 5606-960 | WINDSHIELD,LOW-TINT | 1 | $200.95 | |
| 20 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 21 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 22 | 2718-546 | FACIA,BUMPER-UPR BLK-W/DECALS | 1 | $46.95 | |
| 23 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 24 | 8611-437 | DECAL,FRT BUMPER-CREST | 1 | $19.25 | |
| 25 | 2718-541 | BUMPER,FRONT CLIP-WHT-W/DECALS (GRN SP) | 1 | $167.95 | |
| 25 | 2718-542 | BUMPER,FRONT CLIP-WHT-W/DECALS (ORN SP) | 1 | $169.95 | |
| 26 | 5606-034 | BUMPER,FRONT CLIP-MOLD WHITE | 1 | $145.95 | |
| 27 | 8611-452 | DECAL,FRONT BUMPER-GRN RH | 1 | $31.95 | |
| 27 | 8611-453 | DECAL,FRONT BUMPER-GRN LH | 1 | $31.95 | |
| 27 | 8611-468 | DECAL,FRT BUMPER-ORN RH | 1 | $70.95 | |
| 27 | 8611-469 | DECAL,FRT BUMPER-ORN LH | 1 | $20.95 | |
| 28 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 28 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 29 | 2718-545 | FACIA,BUMPER-LWR WHT-W/DECALS | 1 | $72.95 | |
| 30 | 5606-467 | FACIA,BUMPER-LWR-MOLD WHITE | 1 | $96.95 | |
| 31 | 8611-450 | DECAL,LWR FIA-"TEAM ARCTIC" | 1 | $43.95 | |
| 32 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 33 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 34 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 35 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 36 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 37 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 |
