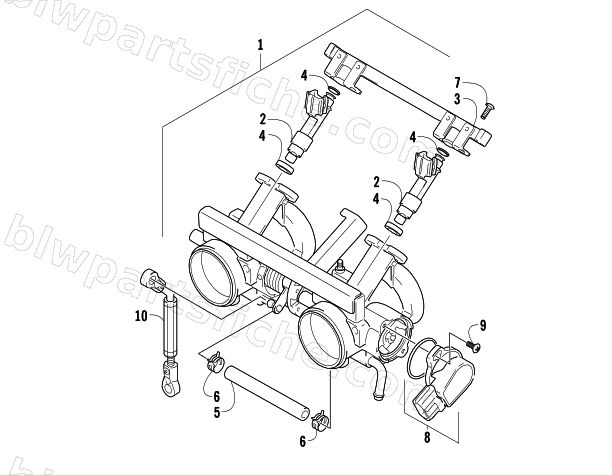

THROTTLE BODY ASSEMBLY
2009 F1000 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-621 | BODY ASSY,THROTTLE | 1 | $2,882.95 | |
| 2 | 3007-720 | INJECTOR ASSY,FUEL | 1 | $647.95 | |
| 2 | 3007-721 | INJECTOR ASSY,FUEL | 1 | $647.95 | |
| 2 | 3007-722 | INJECTOR ASSY,FUEL | 1 | $743.95 | |
| 3 | 3007-291 | PIPE,FUEL DELIVERY | 1 | $477.95 | |
| 4 | 3005-692 | O-RING SET | 1 | $118.95 | |
| 5 | 3007-292 | HOSE | 1 | $56.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3007-443 | SCREW | 1 | $2.06 | |
| 8 | 3006-939 | THROTTLE POSITION SENSOR | 1 | $561.95 | |
| 9 | 3007-026 | SCREW | 1 | $2.47 | |
| 10 | 3007-365 | ROD,OIL PUMP CONTROL | 1 | $105.95 |
