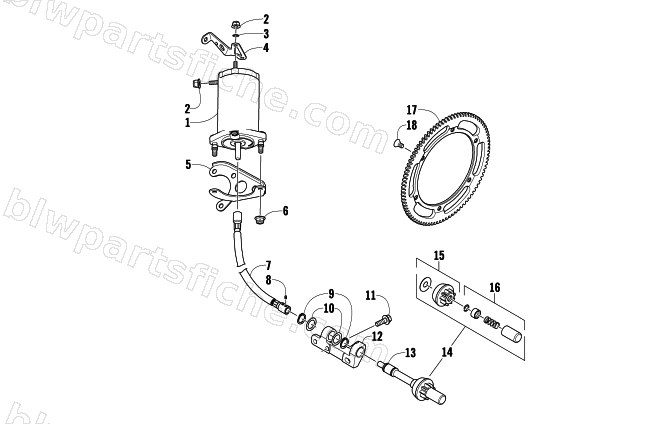

2009 Arctic Cat F5 EFI LXR — FLEX-DRIVE STARTER MOTOR ASSEMBLY
2009 F5 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-356 | STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS | 1 | $434.95 | |
| 2 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 3 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 4 | 0745-326 | BRKT,MTG-STARTER-TOP-PTD BLK-500/600 | 1 | $49.95 | |
| 5 | 0745-321 | BRKT,MTG-STARTER-BOTTOM-PTD BLK-500/600 | 1 | $56.95 | |
| 6 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 0745-312 | SHAFT,FLEX-ES ACCY | 1 | $349.95 | |
| 8 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 9 | 0645-382 | SNAP RING,EXTERNAL - .625 DIA | 1 | $1.64 | |
| 10 | 0645-429 | WASHER,THRUST .630I.D. X .915 O.D. | 1 | $3.95 | |
| 11 | 8026-131 | SCREW,CAP-HFH 5/16-18 X .875 GR8 Z&Y | 1 | $3.16 | |
| 12 | 0745-165 | BRKT, MTG-ES FLEX PINION W/ BUSH | 1 | $58.95 | |
| 13 | 0745-170 | DRIVE/SHAFT, PINION-FLEX 0.63-ASSY | 1 | $232.95 | |
| 14 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 15 | 0645-380 | GEAR, PINION-RUBBER | 1 | $93.95 | |
| 16 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 | |
| 17 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 18 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 |
