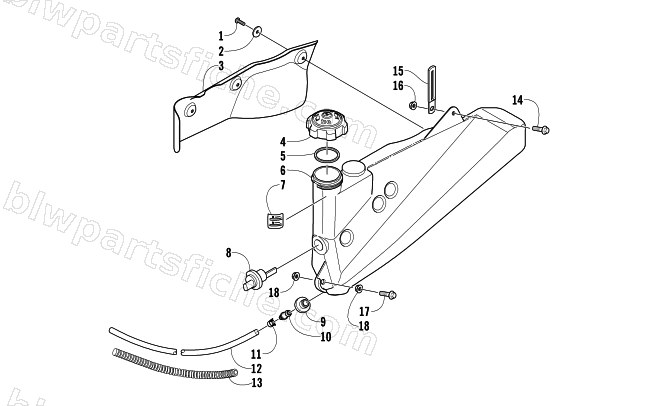

OIL TANK ASSEMBLY
2009 F5 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 2 | 8450-067 | WASHER, FLAT-M5-5.78X11X1.40-Z&Y | 1 | $0.65 | |
| 3 | 2612-158 | SHIELD,HEAT-EXP CHAMBER | 1 | $58.95 | |
| 4 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 5 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 6 | 1670-811 | TANK,OIL-2-STROKE | 1 | $112.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 9 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 10 | 1670-481 | FITTING,OIL TANK | 1 | $4.26 | |
| 11 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 12 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 12 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 13 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 | |
| 14 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 1623-645 | SCREW,CAP-HFH M8X1.25X55 CL8.8 Z&Y | 1 | $13.73 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
