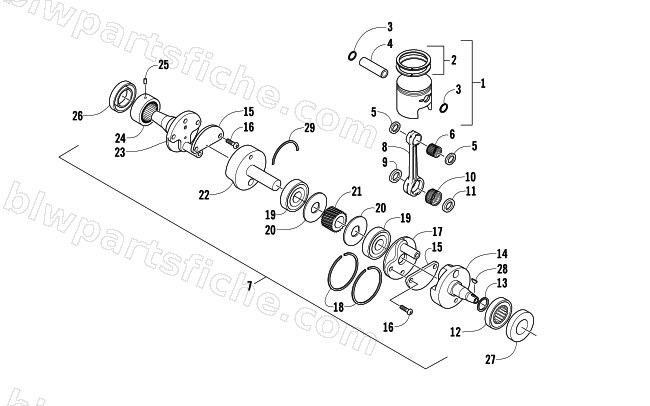

PISTON AND CRANKSHAFT
2009 F5 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-746 | PISTON SET-04' 500 L/C-AA | 1 | $326.95 | |
| 2 | 3005-828 | RING SET (500) | 1 | $117.95 | |
| 3 | 3005-304 | CIRCLIP,M22 | 1 | $3.30 | |
| 4 | 3005-816 | PIN, PISTON | 1 | $34.95 | |
| 5 | 3008-500 | WASHER,22MM | 1 | $5.92 | |
| 6 | 3008-503 | R/B 0932-011 | 1 | $39.95 | |
| 7 | 3007-613 | CRANKSHAFT | 1 | $2,369.95 | |
| 8 | 3007-614 | CONNROD | 1 | $271.95 | |
| 9 | 3005-494 | WASHER,CRANKPIN BEARING | 1 | $20.63 | |
| 10 | 3005-505 | BEARING,NEEDLE ROLLER,M27X34X20 | 1 | $112.95 | |
| 11 | 3005-502 | WASHER,M27X33X1.5 | 1 | $5.92 | |
| 12 | 3005-507 | BEARING,ROLLER,4.2X19X7.5 | 1 | $348.95 | |
| 13 | 3005-603 | WASHER,35MM | 1 | $4.26 | |
| 14 | 3007-045 | CRANKSHAFT,RH | 1 | $483.95 | |
| 15 | 3005-500 | BALANCER, CRANKSHAFT | 1 | $57.95 | |
| 16 | 3007-440 | SCREW | 1 | $2.06 | |
| 17 | 3007-615 | WHEEL,CRANKSHAFT | 1 | $465.95 | |
| 18 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 19 | 3005-504 | BEARING,BALL,M30X75X17 | 1 | $149.95 | |
| 20 | 3005-597 | RACE,MIDDLE CRANK SEAL | 1 | $82.95 | |
| 21 | 3006-353 | GEAR,OIL PUMP DRIVE '02 440 SNO PRO | 1 | $201.95 | |
| 22 | 3006-347 | CRANKSHAFT,MIDDLE'02 440 SNO PRO | 1 | $488.95 | |
| 23 | 3007-616 | CRANKSHAFT,LH | 1 | $536.95 | |
| 24 | 3007-439 | BEARING-LH | 1 | $303.95 | |
| 25 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 26 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 27 | 3008-525 | SEAL, OIL,M30 | 1 | $73.95 | |
| 28 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 29 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 |
