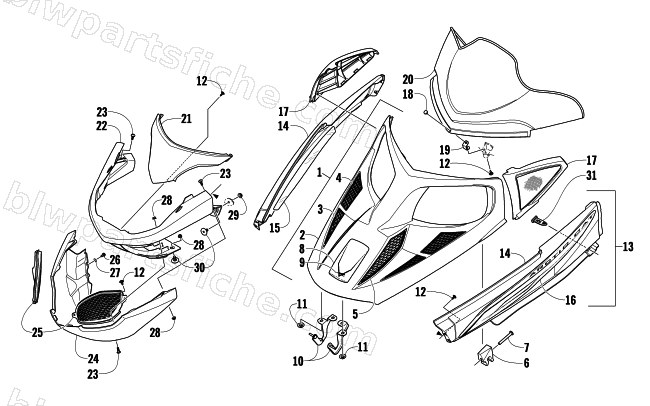

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2009 F8 EFI LXR LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-694 | LID,HOOD-PTD BLK-W/DECALS | 1 | $238.95 | |
| 2 | 7800-316 | LID,HOOD-PTD BLK-MFG ASSY | 1 | $194.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-581 | DECAL,HOOD-CREST | 1 | $36.95 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 10 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 2718-640 | SPAR,FRT RH-BLK W/DECALS | 1 | $206.95 | |
| 13 | 2718-641 | SPAR,FRT LH-BLK W/DECALS | 1 | $181.95 | |
| 14 | 4706-322 | SPAR,FRONT-RH- PTD BLK | 1 | $151.95 | |
| 14 | 4706-323 | SPAR,FRONT-LH- PTD BLK | 1 | $102.95 | |
| 15 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 16 | 8611-514 | DECAL,FRT SPAR-BLK RH | 1 | $136.95 | |
| 16 | 8611-515 | DECAL,FRT SPAR-BLK LH | 1 | $136.95 | |
| 17 | 4706-600 | BEZEL,INTAKE-RH PTD BLK-ASSY | 1 | $105.95 | |
| 17 | 4706-601 | BEZEL,INTAKE-LH PTD BLK-ASSY | 1 | $108.95 | |
| 18 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 20 | 5606-674 | WINDSHIELD,LOW-COPPER | 1 | $167.95 | |
| 21 | 4706-345 | FACIA,BUMPER-UPPER-MOLD-PTD BLK | 1 | $74.95 | |
| 22 | 4706-337 | BUMPER,FRONT CLIP-MOLD-PTD BLK | 1 | $161.95 | |
| 23 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 24 | 4706-321 | FACIA,BUMPER-LWR-PTD COPPER | 1 | $128.95 | |
| 25 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 25 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 26 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 27 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 30 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 31 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
