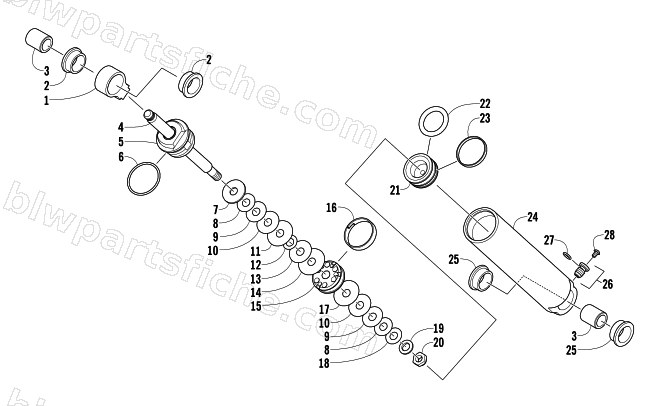

2009 Arctic Cat F8 EFI LXR LE — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2009 F8 EFI LXR LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 1 | 1603-503 | EYELET,SHOCK - 1.000 DIA X 1.137 LGTH | 1 | $26.95 | |
| 2 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 3 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 5 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 6 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 7 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 8 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 9 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 10 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 12 | 2603-062 | VALVE,SHOCK- .900 DIA X .006 | 1 | $5.95 | |
| 13 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 14 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 15 | 3604-415 | PISTON,.063 ORIFICE | 1 | $20.95 | |
| 16 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 17 | 2603-126 | VALVE,SHOCK-1.250 DIA X .012 | 1 | $5.95 | |
| 18 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 19 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 20 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 21 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 22 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 23 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 24 | 2604-598 | BODY,RR SHOCK-1.75 x 7.374 -IMP EXTR | 1 | $239.95 | |
| 25 | 2604-164 | BUSHING,SHOCK-REAR ARM-GRAY | 1 | $9.59 | |
| 26 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 27 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 28 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 |
