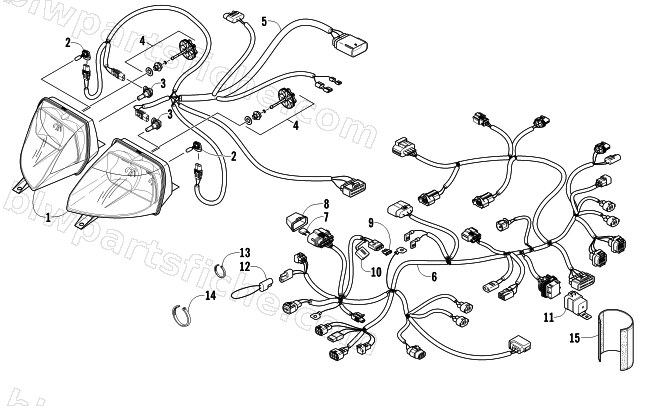

HEADLIGHT AND WIRING ASSEMBLIES
2009 F8 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-808 | HEADLIGHT,RH BLK-ASSY | 1 | $212.95 | |
| 1 | 0609-809 | HEADLIGHT,LH BLK-ASSY | 1 | $216.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-425 | HARNESS,CONSOLE-2-STROKE W/ELEC START | 1 | $249.95 | |
| 6 | 1686-497 | HARNESS,MAIN-09 F8 LXR | 1 | $962.95 | |
| 7 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 8 | 0609-889 | COVER,FUSE HOLDER | 1 | $22.01 | |
| 9 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 11 | 0430-052 | RELAY,SPDT-30A WP | 1 | $30.95 | |
| 12 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 15 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 |
