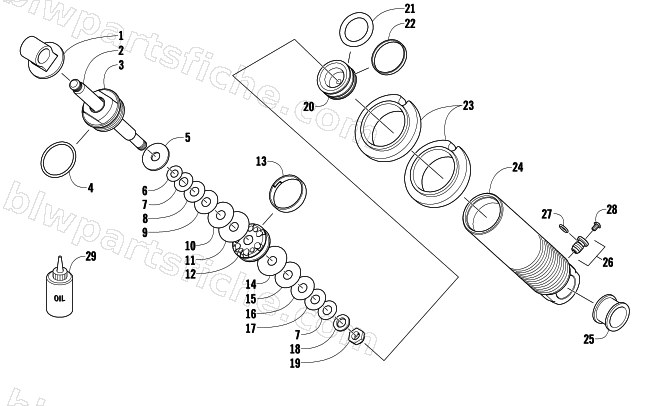

2009 Arctic Cat F8 EFI LXR — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2009 F8 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-738 | SHOCK,FRT ARM-IMP EXTR-12.49" | 1 | $450.95 | |
| 1 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 2 | 3604-410 | SHAFT,SHOCK-CHROME- 6.448" | 1 | $60.95 | |
| 3 | 1703-453 | END CAP,.900-W/ FLATS-ASSY | 1 | $75.95 | |
| 4 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 5 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 6 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 7 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 8 | 2603-064 | VALVE,SHOCK- .900 DIA X .008 | 1 | $5.95 | |
| 9 | 2603-074 | VALVE,SHOCK-1.000 DIA X .008 | 1 | $5.95 | |
| 10 | 2603-094 | VALVE,SHOCK-1.100 DIA X .008 | 1 | $5.95 | |
| 11 | 2603-134 | VALVE,SHOCK-1.300 DIA X .008 | 1 | $5.95 | |
| 12 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 13 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 14 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 15 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 16 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 17 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 18 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 19 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 20 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 23 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 24 | 3604-409 | BODY,FRT SHOCK-1.75 X 6.214"-IMP EXTR | 1 | $319.95 | |
| 25 | 2604-156 | BUSHING,SHOCK-FRT.ARM-GRAY | 1 | $8.21 | |
| 26 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 27 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 28 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 29 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
