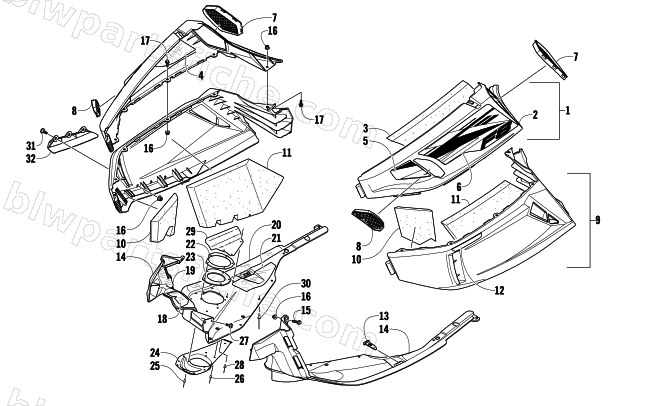

SKID PLATE AND SIDE PANEL ASSEMBLY
2009 F8 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-600 | PANEL,SIDE-UPR RH-W/DECALS | 1 | $347.95 | |
| 1 | 2718-601 | PANEL,SIDE-UPR LH-W/DECALS | 1 | $310.95 | |
| 2 | 2718-356 | PANEL,SIDE-UPR-W/O DECALS RH-WHITE | 1 | $263.95 | |
| 2 | 2718-357 | PANEL,SIDE-UPR-W/O DECALS LH-WHITE | 1 | $255.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 8611-408 | DECAL,UPR PANEL-FWD-GRN RH | 1 | $12.35 | |
| 5 | 8611-409 | DECAL,UPR PANEL-FWD-GRN LH | 1 | $27.95 | |
| 6 | 8611-412 | DECAL,UPR PANEL-CENTER GRN RH-"F8" | 1 | $88.95 | |
| 6 | 8611-413 | DECAL,UPR PANEL-CENTER GRN LH-"F8" | 1 | $88.95 | |
| 7 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 8 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 9 | 2718-524 | PANEL,SIDE-LWR-W/O DECALS RH-BLK(2 STRK) | 1 | $288.95 | |
| 9 | 2718-525 | PANEL,SIDE-LWR-W/O DECALS LH-BLK | 1 | $279.95 | |
| 10 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 10 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 11 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 11 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 12 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 14 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 15 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 18 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 19 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 20 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 21 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 22 | 1712-348 | PLATE,EXHAUST OUTLET SEAL-PTD BLK | 1 | $15.11 | |
| 23 | 2612-156 | SEAL,EXHAUST OUTLET-2 STRK | 1 | $17.87 | |
| 24 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 25 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 26 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 27 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 28 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 29 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 30 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 31 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 32 | 5606-404 | DEFLECTOR,EXHAUST | 1 | $9.79 |
