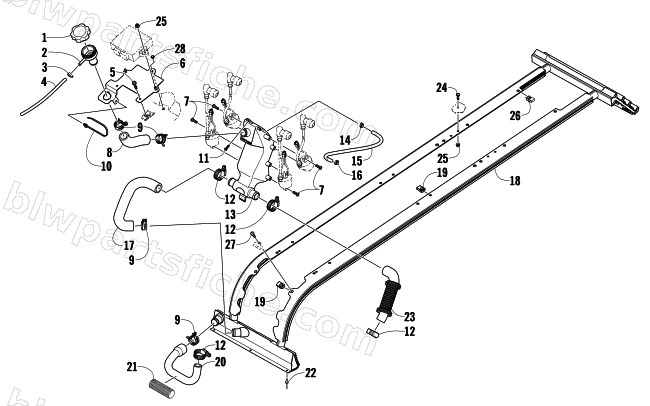

COOLING ASSEMBLY
2009 F8 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-209 | CAP,COOLANT BOTTLE (W/THREADS) | 1 | $26.95 | |
| 2 | 1670-848 | NECK,FILLER-COOLANT TANK | 1 | $14.95 | |
| 3 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 4 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 4 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 5 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 6 | 4706-244 | BRKT,FILLER NECK/ECU MFG ASSY(800/1000) | 1 | $42.95 | |
| 7 | 1623-678 | SCREW,DELTA-60X2.14 PT THREADS-20 MM | 1 | $1.23 | |
| 8 | 0610-750 | HOSE, COOLANT-FILLER NECK-08 TOUR | 1 | $15.11 | |
| 10 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 11 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 13 | 1670-885 | TANK,COOLANT-2 STROKE | 1 | $97.95 | |
| 14 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 15 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 16 | 1623-619 | CLAMP,HOSE-CRIMP-10.5 | 1 | $4.54 | |
| 17 | 0610-696 | HOSE,COOLANT-FRT EXCH/TANK | 1 | $34.95 | |
| 18 | 4706-298 | EXCHANGER,HEAT-W/U-NUT-2 STROKE | 1 | $615.95 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0610-709 | HOSE,COOLANT-ENGINE TO EXCHANGER | 1 | $34.95 | |
| 21 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 22 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 23 | 0610-697 | HOSE,COOLANT-ENGINE/TANK-W/PROTECTOR | 1 | $26.95 | |
| 24 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 25 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 26 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 27 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 28 | 1623-760 | SCREW,CAP-HFH M5X0.8X8 CL4.8 Z&Y | 1 | $1.39 |
