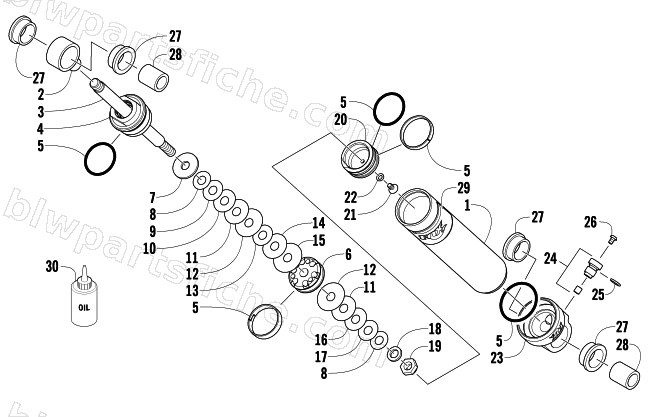

2009 Arctic Cat M6 EFI 153 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2009 M6 EFI 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-812 | SHOCK,REAR ARM-ZERO PRO | 1 | $493.95 | |
| 1 | 2604-864 | BODY,SHOCK - ALUM-7.25" | 1 | $212.95 | |
| 2 | 0604-893 | EYELET, SHOCK(FOX ONLY) | 1 | $81.95 | |
| 4 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 5 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 6 | 2604-412 | PISTON,.055 DIA HOLE | 1 | $58.95 | |
| 7 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 8 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 9 | 0603-886 | VALVE, SHOCK .900 X.015 | 1 | $14.95 | |
| 10 | 0603-887 | VALVE, SHOCK 1.000 X.015 | 1 | $6.95 | |
| 11 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 12 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 13 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 14 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 16 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 17 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 18 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 19 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 20 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 21 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 22 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 23 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 24 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 25 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 26 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 27 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 28 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 29 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 30 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
