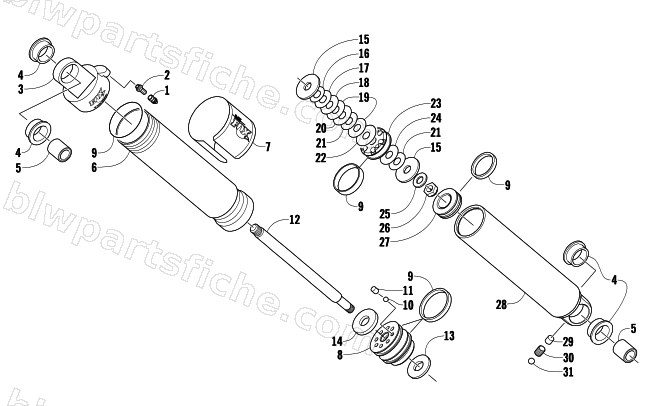

2009 Arctic Cat M8 153 LE SNOW PRO — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2009 M8 153 LE SNOW PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 2603-722 | SLEEVE,AIR ASSY-7.915 TLG (FLOAT) | 1 | $233.95 | |
| 7 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 3604-320 | SHAFT,SHOCK-.498 X 8.150" | 1 | $152.95 | |
| 13 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 14 | 3604-005 | SPACER,.504ID X 1.23OD X .200THK 6061AL | 1 | $29.95 | |
| 15 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 16 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 17 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 18 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 19 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 20 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 21 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 22 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 23 | 2603-482 | PISTON,.046 ORIFICE- (FOX) | 1 | $62.95 | |
| 24 | 0603-883 | VALVE, SHOCK 1.250 X.012(3/8ID) | 1 | $6.95 | |
| 25 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 26 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 27 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 28 | 2603-335 | BODY,SHOCK-IMPACT ALUM-7.725"- (FLOAT) | 1 | $200.95 | |
| 29 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 30 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 31 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 |
