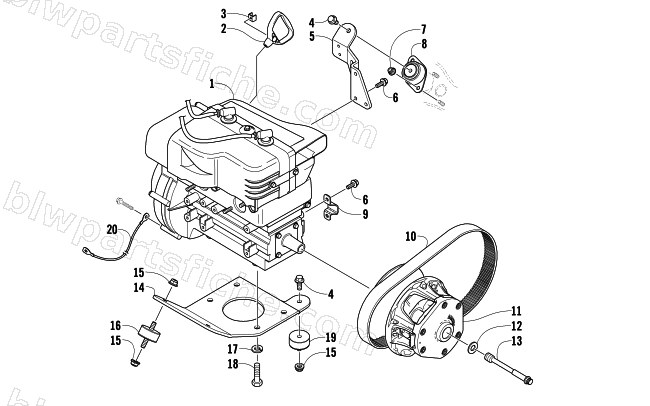

2009 Arctic Cat T570 TOURING — ENGINE AND RELATED PARTS
2009 T570 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-527 | ENGINE,570 F/C (09 F PROD) | 1 | $2,206.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 1623-560 | SCREW, CAP-HFH 3/8-16 X 0.75 W/204 | 1 | $2.75 | |
| 5 | 0608-571 | MOUNT, ENGINE-REAR MAG-570 | 1 | $49.95 | |
| 6 | 1623-553 | SCREW, CAP-HFH 5/16-18 X .750 W/2353 | 1 | $1.37 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 9 | 0708-543 | PLATE, SNUBBER-PTD BLK-08 570 | 1 | $46.95 | |
| 10 | 0627-067 | BELT,DRIVE-S-2A-1.406"WX45.394"OC-DC | 1 | $133.95 | |
| 11 | 0746-838 | CLUTCH,DRIVE-UNCAL-8.25 30MM/S | 1 | $648.95 | |
| 12 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 13 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 14 | 0608-562 | PLATE, MOTOR MOUNT-08 570 | 1 | $121.95 | |
| 15 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 16 | 0608-250 | MOUNT,ENG-60 DURO (DOUBLE MALE) | 1 | $27.95 | |
| 17 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 18 | 8002-402 | SCREW,CAP-HH 1/2-13 X1.00 G5 Z&Y | 1 | $1.64 | |
| 19 | 0608-251 | MOUNT,ENG-60 DURO (FULL WASHER) | 1 | $26.95 | |
| 20 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 |
