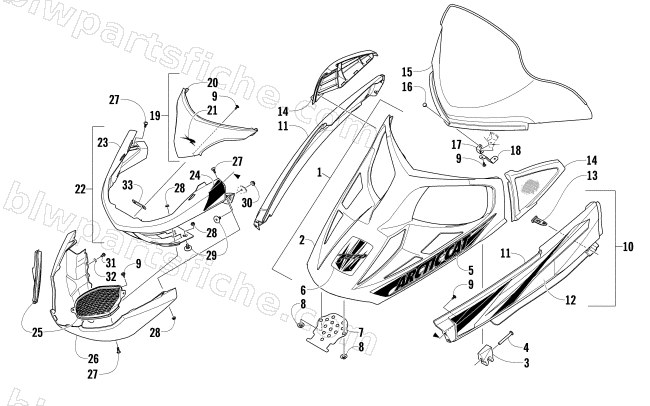

2009 Arctic Cat T570 TOURING — HOOD, WINDSHIELD, AND FRONT BUMBER ASSEMBLY
2009 T570 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-602 | LID, HOOD-GRN-W/DECALS | 1 | $275.95 | |
| 2 | 7999-632 | LID, HOOD-GRN-MFG ASSY-W/O VENTS | 1 | $189.95 | |
| 3 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 3 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 4 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 5 | 8611-376 | DECAL,HOOD-"ARCTIC CAT"-RH (TOUR) | 1 | $47.95 | |
| 5 | 8611-377 | DECAL,HOOD-"ARCTIC CAT"-LH (TOUR) | 1 | $49.95 | |
| 6 | 8611-372 | DECAL,HOOD CREST-"T570" | 1 | $102.95 | |
| 7 | 5606-042 | BRKT, LID HINGE-08 PROD | 1 | $33.95 | |
| 8 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 2718-703 | SPAR,FRONT-RH-BLK-W/DECALS F/C GRN | 1 | $81.95 | |
| 10 | 2718-561 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $135.95 | |
| 11 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 11 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 12 | 8611-380 | DECAL,SPAR-RH (TOUR) | 1 | $185.95 | |
| 12 | 8611-381 | DECAL,SPAR-LH (TOUR) | 1 | $166.95 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 5606-920 | BEZEL,INTAKE-RH-GRN ASSY | 1 | $37.59 | |
| 14 | 5606-921 | BEZEL,INTAKE-LH-GRN ASSY | 1 | $54.95 | |
| 15 | 5606-962 | WINDSHIELD,HIGH-TINT | 1 | $224.95 | |
| 16 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 17 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 18 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 19 | 2718-548 | FACIA,BUMPER-UPR GRN-W/DECALS | 1 | $46.95 | |
| 20 | 4606-519 | FACIA,BUMPER-UPPER-MOLD GRN | 1 | $79.95 | |
| 21 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 22 | 2718-543 | BUMPER,FRONT CLIP-GRN-W/DECALS (Z1 GRN) | 1 | $230.95 | |
| 25 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 25 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 26 | 5606-463 | R/B 5606-462 | 1 | $56.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 5606-953 | SPACER,UPPER FASCIA | 1 | $3.44 |
