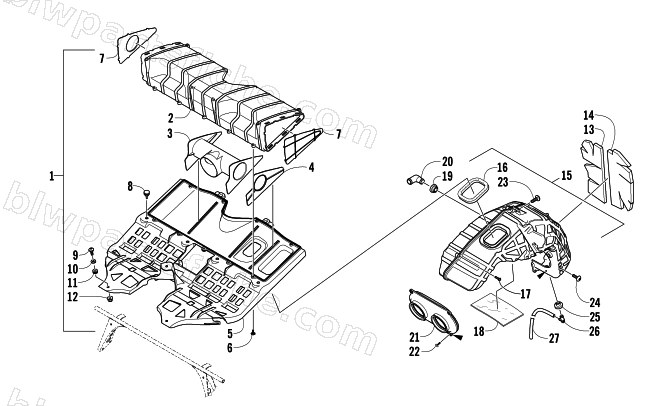

AIR SILENCER ASSEMBLY
2009 TZ1 PARK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-709 | INTAKE, SUPPORT-ASSY-4 STROKE | 1 | $171.95 | |
| 2 | 1670-732 | INTAKE SUPPORT - TOP | 1 | $66.95 | |
| 3 | 1670-828 | RESONATOR,TOP PLENUM | 1 | $19.25 | |
| 4 | 1670-829 | BAFFLE,TOP PLENUM | 1 | $8.21 | |
| 5 | 1670-733 | INTAKE, SUPPORT-BOTTOM-4 STROKE | 1 | $77.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1670-830 | COVER,TOP PLENUM-RH | 1 | $13.73 | |
| 7 | 1670-831 | COVER,TOP PLENUM-LH | 1 | $13.73 | |
| 8 | 4606-276 | GROMMET,HEADLIGHT-REAR | 1 | $12.35 | |
| 9 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 10 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 11 | 4606-275 | GROMMET,HEADLIGHT-FRONT | 1 | $6.75 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 0617-542 | FOAM,AIRBOX-RH | 1 | $38.95 | |
| 14 | 0617-543 | FOAM,AIRBOX-LH | 1 | $38.95 | |
| 15 | 5639-934 | AIRBOX,SPLIT-KIT | 1 | $233.95 | |
| 17 | 1623-711 | SCREW,DELTA 50X1.80X20 RPH | 1 | $2.95 | |
| 18 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 19 | 1670-785 | GROMMET,FITTING | 1 | $1.78 | |
| 20 | 1670-784 | FITTING,ELBOW-PLASTIC | 1 | $3.99 | |
| 21 | 1670-731 | BOOT, DUAL INTAKE | 1 | $33.95 | |
| 22 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 23 | 1623-609 | SCREW,PT THREAD FORMING-K60-2.69X22MM | 1 | $3.16 | |
| 24 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 25 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 26 | 1670-324 | ELBOW, 90 DEG-1/4 BARB | 1 | $3.44 | |
| 27 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 27 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 |
