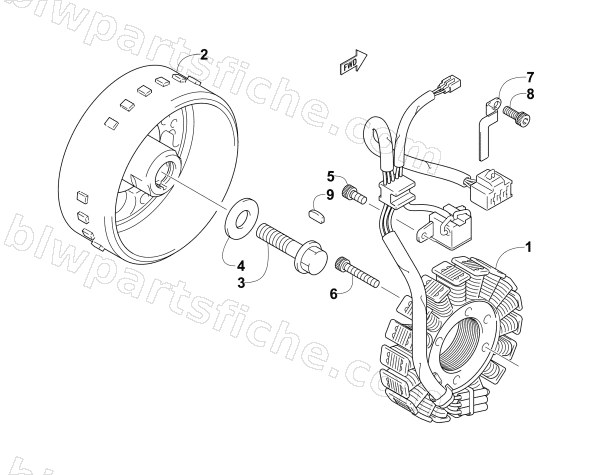

MAGNETO ASSEMBLY
2009 TZ1 PARK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-231 | STATOR ASSY | 1 | $515.95 | |
| 2 | 3007-232 | ROTOR ASSY | 1 | $1,164.95 | |
| 3 | 3007-233 | BOLT,FLYWHEEL (12X40) | 1 | $3.44 | |
| 4 | 3007-234 | WASHER,FLYWHEEL (12X30X3) | 1 | $3.95 | |
| 5 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 6 | 3007-450 | BOLT | 1 | $3.85 | |
| 7 | 3007-235 | CLAMP,LEAD WIRE | 1 | $8.21 | |
| 9 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
