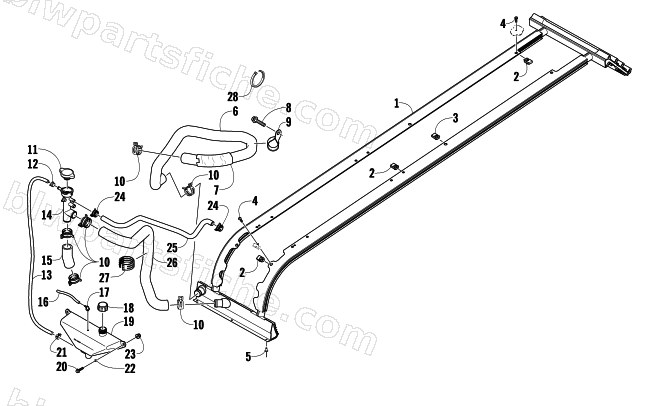

COOLING ASSEMBLY
2009 TZ1 TOURING LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-278 | EXCHANGER,HEAT-144"-WELDT | 1 | $560.95 | |
| 2 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 0610-638 | HOSE, COOLANT-ENG TO EXCH | 1 | $117.95 | |
| 7 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 8 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 4606-388 | BRKT, COOLANT HOSE | 1 | $19.25 | |
| 11 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 12 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 13 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 13 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 14 | 1670-998 | NECK,FILLER-COOLANT | 1 | $17.87 | |
| 15 | 0610-753 | HOSE, COOLANT-FILLER TO ENG | 1 | $20.63 | |
| 16 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 17 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 18 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 19 | 0613-026 | R/B 0713-119 | 1 | $84.95 | |
| 20 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 21 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 22 | 5606-560 | SPACER,5MM-(5/16" OD) | 1 | $3.71 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 | |
| 25 | 0610-783 | HOSE,COOLANT-BYPASS | 1 | $24.77 | |
| 26 | 0610-778 | HOSE,COOLANT-EXCH TO FLR NECK | 1 | $60.95 | |
| 27 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
