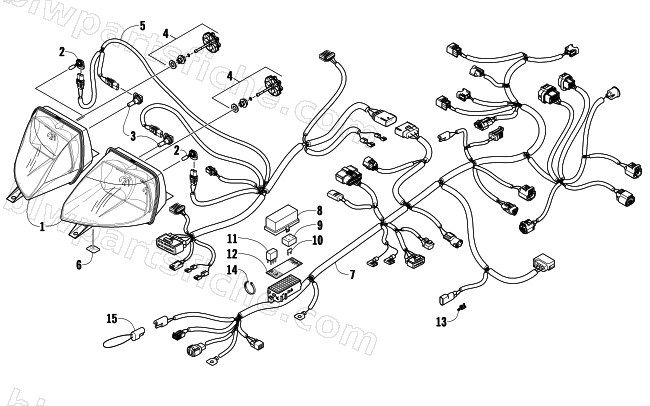

HEADLIGHT AND WIRING ASSEMBLIES
2009 TZ1 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-808 | HEADLIGHT,RH BLK-ASSY | 1 | $212.95 | |
| 1 | 0609-809 | HEADLIGHT,LH BLK-ASSY | 1 | $216.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-427 | HARNESS,CONSOLE-4-STROKE | 1 | $245.95 | |
| 6 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 7 | 1686-345 | HARNESS, MAIN-'08 TOURING | 1 | $1,095.95 | |
| 8 | 0530-008 | COVER, PDM - ASSY | 1 | $34.95 | |
| 9 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 10 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 10 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 11 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 12 | 8611-240 | DECAL,POWER DISTRIBUTION MODULE | 1 | $13.95 | |
| 13 | 1623-715 | CLIP, ANTI ROTATIONAL | 1 | $2.75 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 |
