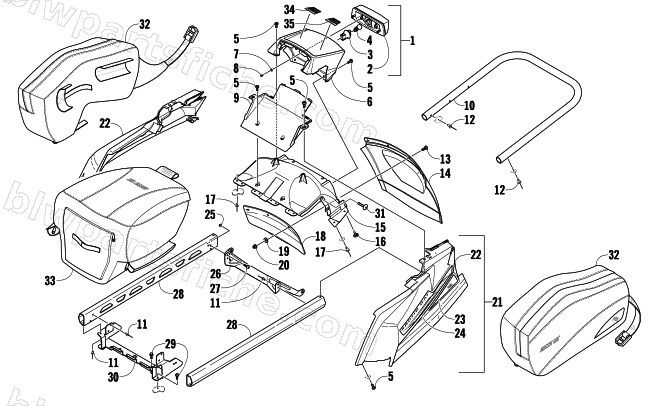

2009 Arctic Cat TZ1 TURBO LXR LE — REAR BUMPER, RACK RAIL, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2009 TZ1 TURBO LXR LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 4 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 5 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 6 | 4706-335 | HOOD,TAILLIGHT-PTD BLK | 1 | $56.95 | |
| 7 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 8 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 9 | 4706-334 | PANEL,TAILLIGHT ACCESS-PTD BLK | 1 | $38.95 | |
| 10 | 1707-318 | BUMPER, REAR - PTD BLK | 1 | $142.95 | |
| 10 | 1707-260 | BUMPER, REAR-PTD BLK | 1 | $142.95 | |
| 11 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 12 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 13 | 1623-782 | SCREW,MACH-TSTRH M6X1.0X20 RIE BLK | 1 | $1.92 | |
| 14 | 5606-254 | SNOWFLAP, BLK-W/8611-268 | 1 | $84.95 | |
| 15 | 5606-056 | CLOSE-OFF, TUNNEL-MOLD BLK | 1 | $46.95 | |
| 16 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 17 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 18 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 19 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 2718-684 | FENDER,REAR-RH W/DECALS TZ1 TURBO-CP | 1 | $73.95 | |
| 21 | 2718-685 | FENDER,REAR-LH W/DECALS TZ1 TURBO-CP | 1 | $75.95 | |
| 22 | 2718-674 | FENDER,REAR-RH W/O DECAL TZ1 TURBO | 1 | $61.95 | |
| 22 | 2718-675 | FENDER,REAR-LH W/O DECAL TZ1 TURBO | 1 | $66.95 | |
| 23 | 8611-304 | DECAL,REFLECTOR-RED-RH (TOUR) | 1 | $20.63 | |
| 23 | 8611-305 | DECAL,REFLECTOR-RED-LH (TOUR) | 1 | $20.63 | |
| 24 | 8611-572 | DECAL,REAR/FENDER-RH(LXR/TRBO-CP) | 1 | $24.77 | |
| 24 | 8611-573 | DECAL,REAR/FENDER-LH(LXR/TRBO-CP) | 1 | $24.77 | |
| 25 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 26 | 3706-989 | MOUNT, RAIL-REAR-PTD BLK | 1 | $102.95 | |
| 27 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 28 | 3706-857 | RAIL, RACK-MACH | 1 | $86.95 | |
| 29 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 30 | 4706-017 | BRKT, RAIL MOUNT-FRT-PTD BLK | 1 | $82.95 | |
| 31 | 1623-700 | SCREW, SELF TAPPING-M8X42 TRILOBE Z&Y | 1 | $3.16 | |
| 32 | 5606-173 | SADDLEBAG, SIDE-LH | 1 | $241.95 | |
| 33 | 5606-171 | SADDLEBAG, REAR | 1 | $288.95 | |
| 34 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 35 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 36 | 3706-896 | BRKT, HITCH-PTD BLK | 1 | $30.95 | |
| 37 | 0706-727 | HITCH,PINTAL-ASSY-SWEDISH | 1 | $109.95 | |
| 38 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 39 | 0623-335 | SPRING,TRAILER HITCH LATCH | 1 | $15.11 | |
| 40 | 2706-229 | LATCH,HITCH-PTD BLK | 1 | $15.11 | |
| 41 | 0623-213 | PIN,HITCH-COTTERLESS-SWEDISH | 1 | $20.63 | |
| 42 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 43 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 44 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
