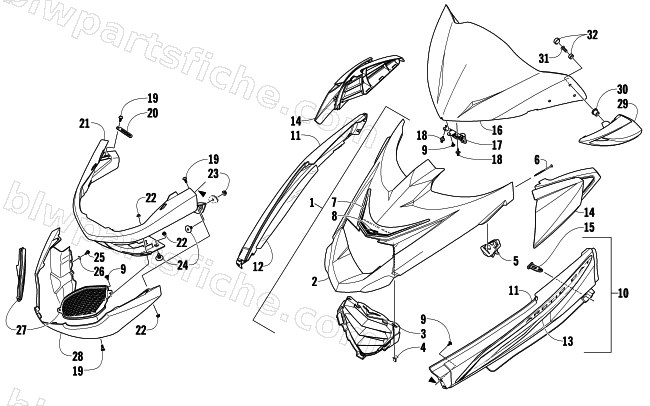

2009 Arctic Cat TZ1 TURBO LXR — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2009 TZ1 TURBO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-668 | LID,HOOD-PTD BLK-W/DECALS TZ1 TURBO | 1 | $256.95 | |
| 2 | 7800-520 | LID, HOOD-PTD BLK-TURBO-MFG ASSY | 1 | $197.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 8611-563 | DECAL,HOOD CREST-TURBO Z1 | 1 | $93.95 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 2718-666 | SPAR,FRONT-RH-BLK-W/DECALS TZ1 TURBO | 1 | $57.95 | |
| 10 | 2718-667 | SPAR,FRONT-LH-BLK-W/DECALS TZ1 TURBO | 1 | $57.95 | |
| 11 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 11 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 12 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 13 | 8611-564 | DECAL,FRT SPAR-RH-TURBO TZ1 | 1 | $46.95 | |
| 13 | 8611-565 | DECAL,FRT SPAR-LH-TURBO TZ1 | 1 | $44.95 | |
| 14 | 5606-776 | BEZEL,INTAKE-RH BLK-ASSY(TURBO) | 1 | $66.95 | |
| 14 | 5606-777 | BEZEL,INTAKE-LH BLK-ASSY(TURBO) | 1 | $66.95 | |
| 15 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 16 | 5606-665 | WINDSHIELD, TURBO W/HOLES-MID BLK | 1 | $192.95 | |
| 17 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 18 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 19 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 4606-512 | BUMPER,FRONT CLIP-MOLD BLK | 1 | $141.95 | |
| 22 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 23 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 24 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 25 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 26 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 27 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 27 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 28 | 5606-466 | R/B 5606-462 | 1 | $56.95 | |
| 29 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 30 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 31 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 32 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 |
