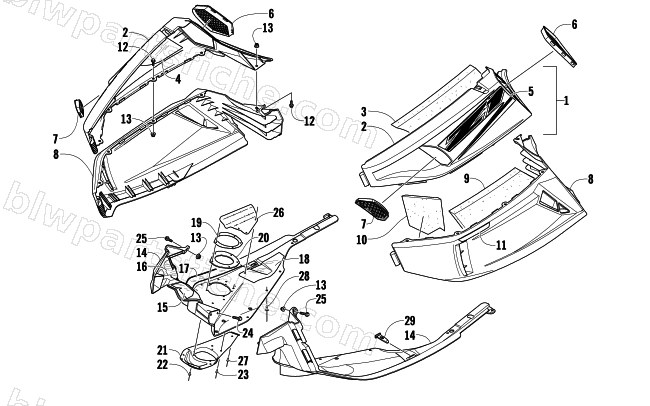

2009 Arctic Cat Z1 1100 EFI — SKID PLATE AND SIDE PANEL ASSEMBLY
2009 Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-578 | PANEL,SIDE-UPR RH-W/DECALS | 1 | $322.95 | |
| 1 | 2718-579 | PANEL,SIDE-UPR LH-W/DECALS | 1 | $291.95 | |
| 2 | 2718-716 | PANEL,SIDE-UPR-W/O DECALS RH BLK | 1 | $302.95 | |
| 2 | 2718-289 | PANEL,SIDE-UPR-W/O DECALS-LH BLK | 1 | $263.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 8611-398 | DECAL,UPPER VENT PANEL-RH (Z1) | 1 | $45.95 | |
| 5 | 8611-399 | DECAL,UPPER VENT PANEL-LH (Z1) | 1 | $45.95 | |
| 6 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 6 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 7 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 2718-718 | PANEL,SIDE-LWR-W/O DECALS RH BLK | 1 | $332.95 | |
| 8 | 2718-525 | PANEL,SIDE-LWR-W/O DECALS LH-BLK | 1 | $279.95 | |
| 9 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 10 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 11 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 14 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 15 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 16 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 17 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 18 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 19 | 1712-328 | PLATE,EXH-OUTLET SEAL-PTD | 1 | $56.95 | |
| 20 | 2612-122 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $17.87 | |
| 21 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 22 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 23 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 24 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 25 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 26 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 27 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 28 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 29 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
