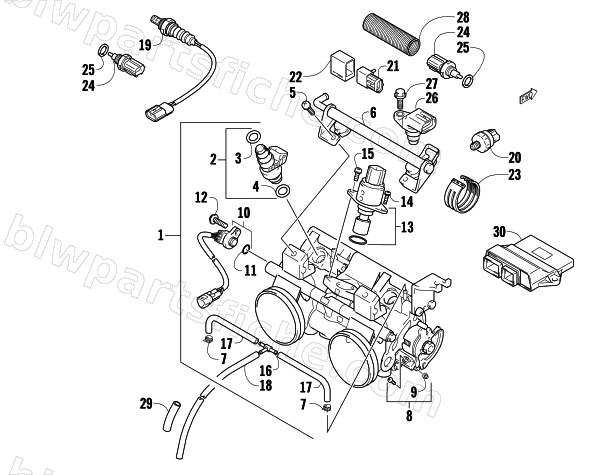

THROTTLE BODY ASSEMBLY
2009 Z1 BEARCAT XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-715 | BODY,THROTTLE-ASSY | 1 | $2,785.95 | |
| 2 | 3007-194 | INJECTOR ASSY | 1 | $578.95 | |
| 3 | 3007-195 | O RING | 1 | $23.39 | |
| 4 | 3007-196 | O RING | 1 | $23.39 | |
| 5 | 3007-197 | SCREW | 1 | $4.95 | |
| 6 | 3007-198 | PIPE,FUEL | 1 | $211.95 | |
| 7 | 3007-199 | CLIP | 1 | $14.95 | |
| 8 | 3007-200 | SCREW,STOP | 1 | $10.95 | |
| 10 | 3007-859 | SENSOR ASSY,THROTTLE | 1 | $512.95 | |
| 11 | 3007-203 | O RING | 1 | $12.35 | |
| 12 | 3007-204 | SCREW,TORX | 1 | $3.85 | |
| 13 | 3007-205 | MOTOR SET,STEP | 1 | $318.95 | |
| 14 | 3007-206 | SCREW (4X12) | 1 | $4.95 | |
| 15 | 3007-207 | SCREW (5X12) | 1 | $3.16 | |
| 16 | 3007-208 | JOINT | 1 | $29.95 | |
| 17 | 3007-209 | PIPE,RUBBER | 1 | $30.95 | |
| 18 | 3007-210 | PIPE,RUBBER | 1 | $26.95 | |
| 19 | 3006-588 | SENSOR,OXYGEN | 1 | $473.95 | |
| 20 | 3006-844 | SWITCH ASS'Y,OIL PRESSURE | 1 | $68.95 | |
| 21 | 3007-517 | SENSOR,BOOST (AIR PRESSURE) | 1 | $432.95 | |
| 22 | 3007-213 | COVER | 1 | $22.95 | |
| 23 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 24 | 3007-060 | SENSOR,WATER TEMP | 1 | $216.95 | |
| 25 | 3530-047 | GASKET,WATER TEMP SENSOR | 1 | $4.40 | |
| 26 | 3007-216 | SENSOR ASSY,CAM POSITION | 1 | $318.95 | |
| 27 | 3007-392 | BOLT | 1 | $3.95 | |
| 28 | 3007-218 | PROTECTOR,WATER TEMP SENSOR | 1 | $23.39 | |
| 30 | 3007-672 | ECU-'09 1100 N/A | 1 | $2,624.95 |
