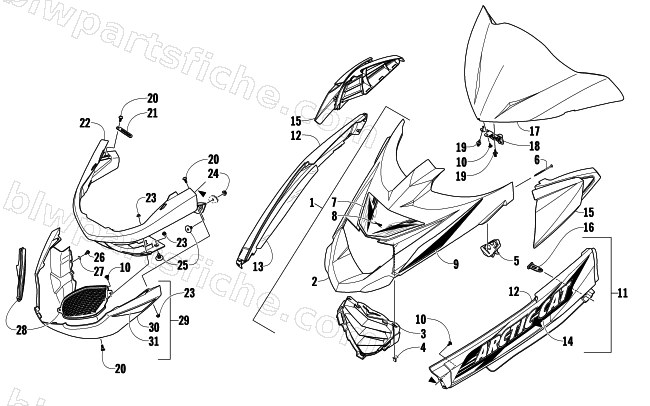

2009 Arctic Cat Z1 TURBO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2009 Z1 TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-687 | LID,HOOD-INJ GREY-W/DECALS | 1 | $466.95 | |
| 2 | 7800-307 | LID,HOOD-INJ GREY-MFG ASSY | 1 | $340.95 | |
| 3 | 5606-655 | GRILLE,INTERCOOLER-MOLD BLK | 1 | $20.63 | |
| 4 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 5 | 1623-768 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $23.39 | |
| 5 | 1623-769 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $23.39 | |
| 6 | 1623-810 | SCREW,WOOD-TSFH-#8-13X3.00" Z&Y | 1 | $0.95 | |
| 7 | 8611-580 | DECAL,HOOD-CREST | 1 | $39.95 | |
| 8 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 9 | 8611-434 | DECAL,HOOD LID-BLK-RH | 1 | $45.95 | |
| 9 | 8611-435 | DECAL,HOOD LID-BLK-LH | 1 | $45.95 | |
| 10 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 11 | 2718-554 | SPAR,FRONT-RH-BLK-W/DECALS | 1 | $162.95 | |
| 11 | 2718-555 | SPAR,FRONT-LH-BLK-W/DECALS | 1 | $162.95 | |
| 12 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 12 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 13 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 14 | 8611-430 | DECAL,FRT SPAR-BLK RH "ARCTIC CAT" | 1 | $73.95 | |
| 14 | 8611-431 | DECAL,FRT SPAR-BLK LH "ARCTIC CAT" | 1 | $73.95 | |
| 15 | 5606-782 | BEZEL,INTAKE-RH INJ GREY-ASSY(TURBO) | 1 | $72.95 | |
| 15 | 5606-783 | BEZEL,INTAKE-LH INJ GREY-ASSY(TURBO) | 1 | $64.95 | |
| 16 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 17 | 6606-274 | WINDSHIELD,TURBO-MID TINT-W\HOLES | 1 | $273.95 | |
| 18 | 4706-442 | BRKT,WINDSHIELD-HOLDDOWN-PTD BLK | 1 | $29.95 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 22 | 4606-512 | BUMPER,FRONT CLIP-MOLD BLK | 1 | $141.95 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 25 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 26 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 27 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 28 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 28 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 29 | 2718-544 | FACIA,BUMPER-LWR BLK-W/DECALS | 1 | $99.95 | |
| 30 | 5606-462 | FACIA,BUMPER-LWR-MOLD BLK | 1 | $65.95 | |
| 31 | 8611-416 | DECAL,LWR FIA-FRT BUMPER-RH | 1 | $27.95 | |
| 31 | 8611-417 | DECAL,LWR FIA-FRT BUMPER-LH | 1 | $26.95 |
