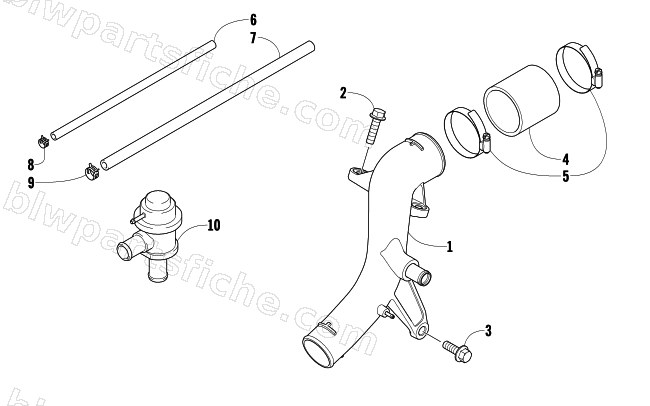

INTERCOOLER OUTLET ASSEMBLY
2009 Z1 TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-816 | PIPE,IC OUTLET | 1 | $466.95 | |
| 2 | 3007-377 | BOLT | 1 | $3.49 | |
| 3 | 3007-817 | NUT,IC OULET PIPE | 1 | $5.95 | |
| 4 | 3007-818 | HOSE,IC OUTLET | 1 | $67.95 | |
| 5 | 3007-819 | CLAMP,IC OUTLET HOSE | 1 | $26.95 | |
| 6 | 3006-851 | HOSE,3.5X7.5X601 | 1 | $24.77 | |
| 7 | 3005-622 | HOSE, OIL (FUEL PUMP SIDE) 600MM | 1 | $30.95 | |
| 8 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 9 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 | |
| 10 | 3007-820 | VALVE,AIR BYPASS | 1 | $277.95 |
