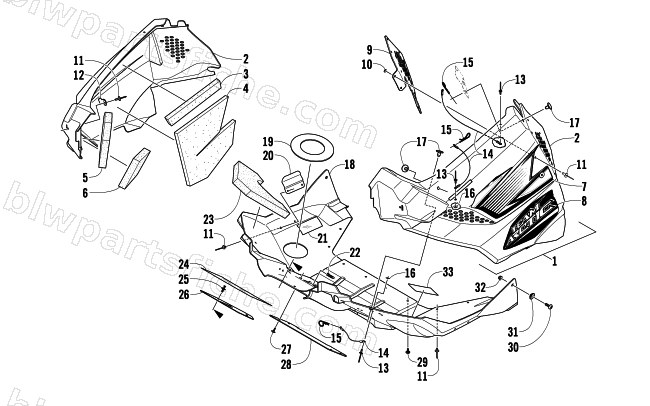

2010 Arctic Cat 600 SNO PRO CROSS COUNTRY — BELLY PAN ASSEMBLY
2010 600 SNO PRO CROSS COUNTRY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-918 | PANEL,SIDE-RH-W/DECALS | 1 | $500.95 | |
| 1 | 2718-919 | PANEL,SIDE-LH-W/DECALS | 1 | $513.95 | |
| 2 | 2718-730 | PANEL,SIDE-RH-W/O DECALS | 1 | $391.95 | |
| 2 | 2718-731 | PANEL,SIDE-LH-W/O DECALS | 1 | $391.95 | |
| 3 | 0617-574 | FOAM,SIDE PANEL-UPR RH | 1 | $37.95 | |
| 3 | 0617-575 | FOAM,SIDE PANEL-UPR LH | 1 | $37.95 | |
| 4 | 0617-572 | FOAM,SIDE PANEL-LWR RH | 1 | $60.95 | |
| 4 | 0617-573 | FOAM,SIDE PANEL-LWR LH | 1 | $60.95 | |
| 5 | 0617-590 | FOAM,SIDE PANEL-UPR FWD RH | 1 | $37.95 | |
| 5 | 0617-591 | FOAM,SIDE PANEL-UPR FWD LH | 1 | $37.95 | |
| 6 | 0617-592 | FOAM,SIDE PANEL-LWR FWD RH | 1 | $16.49 | |
| 6 | 0617-593 | FOAM,SIDE PANEL-LWR FWD LH | 1 | $29.95 | |
| 7 | 9611-020 | DECAL,SIDE PANEL-UPR RH | 1 | $57.95 | |
| 7 | 9611-021 | DECAL,SIDE PANEL-UPR LH | 1 | $56.95 | |
| 8 | 9611-036 | DECAL,SIDE PANEL-LWR RH | 1 | $32.95 | |
| 8 | 9611-037 | DECAL,SIDE PANEL-LWR LH | 1 | $32.95 | |
| 9 | 6606-047 | PANEL,REINFORCEMENT | 1 | $19.25 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 12 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 12 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 13 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 14 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 15 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 16 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 17 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 18 | 5606-871 | BELLY PAN | 1 | $512.95 | |
| 19 | 2612-507 | PLATE,EXHAUST OUTLET SEAL | 1 | $15.11 | |
| 20 | 0607-892 | BRKT,LATCH-CLUTCH GUARD | 1 | $12.35 | |
| 21 | 2606-558 | FOIL, PROTECTIVE,3" X 8" | 1 | $3.30 | |
| 22 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 23 | 0617-586 | FOAM,BELLY PAN-LWR RH | 1 | $51.95 | |
| 24 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 5606-954 | PANEL,CLOSEOFF | 1 | $15.11 | |
| 27 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 28 | 5606-872 | COVER, ACCESS-CARBURETOR | 1 | $17.87 | |
| 29 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 30 | 8477-635 | SCREW,MACH-TSTRH M6X1.0X35 Z&BLK | 1 | $0.81 | |
| 31 | 0623-870 | INSERT, STRAP,SERVO MTG | 1 | $23.39 | |
| 32 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 33 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 |
